5433273
ActivePhoenix Contact
CONN SHROUDED HEADER (2 SIDES) HDR 5 POS 5.08MM SOLDER RA SIDE ENTRY THRU-HOLE CARDBOARD
5433273
ActivePhoenix Contact
CONN SHROUDED HEADER (2 SIDES) HDR 5 POS 5.08MM SOLDER RA SIDE ENTRY THRU-HOLE CARDBOARD
Description
General part information
5433273

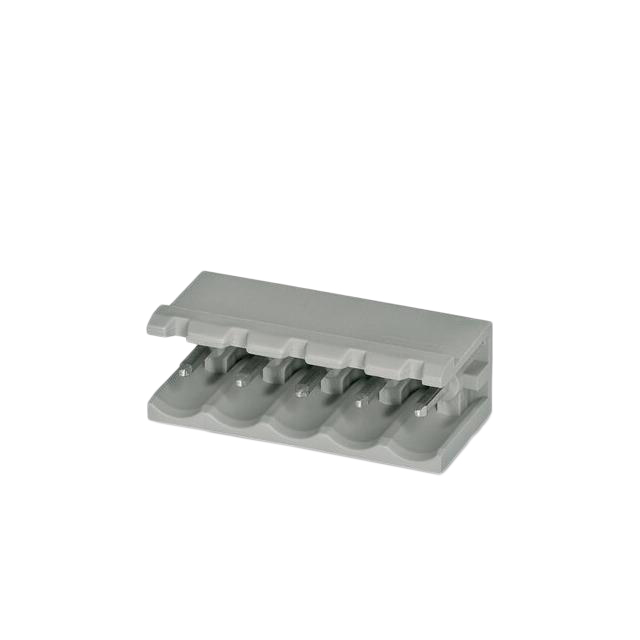

5 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 5433273 |
|---|---|
| Color | Gray |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.138 in |
| Current - IEC | 12 A |
| Current - UL | 15 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Housing Material | Nylon, Polyamide, PA |
| Insulation Height | 0.339 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Pitch | 5.08 mm |
| Positions Per Level | 5 |
| Termination Style | Solder |
| Type | Male Pins, Shrouded (2 Side), Header |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
