1404867
ActivePhoenix Contact
FLAT CABLES VS-ASI-FC-PVC-UL YE/1000
1404867
ActivePhoenix Contact
FLAT CABLES VS-ASI-FC-PVC-UL YE/1000
Description
General part information
1404867

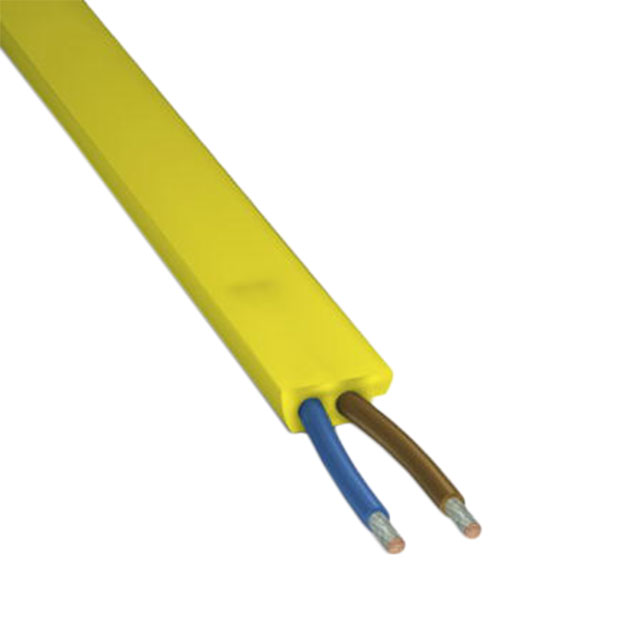

Flat Ribbon Cable Yellow 2 Conductors Flat Cable 3281' (1000.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1404867 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Bare |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Yellow |
| Length | 3281 ft |
| Number of Conductors | 2 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -30 °C |
| Voltage | 300 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
