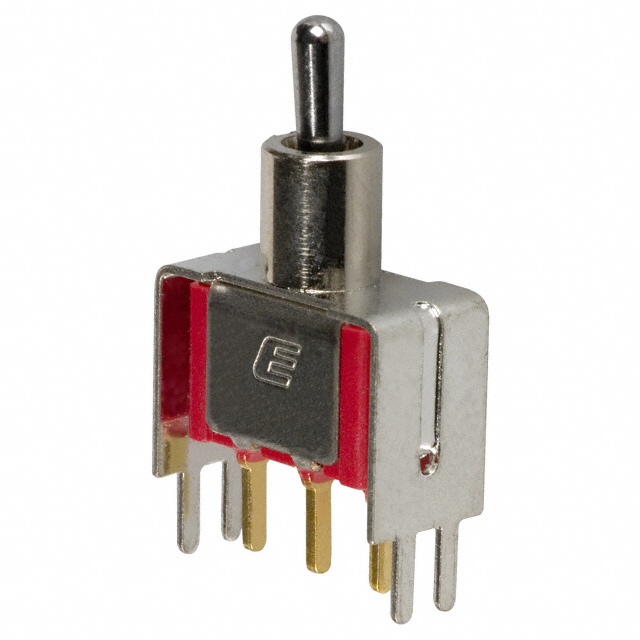

100SP3T2B4VS2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100SP3T2B4VS2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.33
		10	$ 3.87
		25	$ 3.66
		54	$ 3.53
		108	$ 3.35
		270	$ 3.20
		540	$ 2.94
		1026	$ 2.81

Description

General part information

100SP3 Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP3T2B4VS2RE	100SP3 Series

Actuator Length	-	6.86 mm
Actuator Length [x]	5.08 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Flat Anti-Rotation, Locking Lever
Bushing Thread	Unthreaded	1/4-40, 15/32-32, Unthreaded, M6 x 0.75
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole	Through Hole, Vertical, Right Angle, Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 11.91 in
Switch Function	On-Off-On	On-Off-On, On-On
Termination Style	PC Pin	Solder Lug, PC Pin, Wire Wrap, Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100SP3 Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Electrical Life	Features	Actuator Type	Bushing Thread	Panel Cutout Dimensions [diameter]	Switch Function	Illumination	Current Rating (Amps)	Voltage Rating - DC	Actuator Material	Actuator Length [x]	Voltage Rating - AC	Circuit	Mounting Type
E-Switch 100SP3T1B6M1REH	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	10.41 mm	20 V	SPDT
E-Switch 100SP3T7B13M2REH	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	15/32-32	11.91 mm	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	13 mm	20 V	SPDT
E-Switch 100SP3T2B9M1REH	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	5.08 mm	20 V	SPDT
E-Switch 100SP3T2B4VS2QE	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	Unthreaded		On-Off-On	Non-Illuminated	5 A	28 V	Brass, Chrome Plated	5.08 mm	120 V	SPDT	Through Hole
E-Switch 100SP3T2B9M1RE	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	5.08 mm	20 V	SPDT
E-Switch 100SP3T2B1M2QEH	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	5 A	28 V	Brass, Chrome Plated	5.08 mm	120 V	SPDT
E-Switch 100SP3T8B13M1RE	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	15/32-32	11.91 mm	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	18 mm	20 V	SPDT
E-Switch 100SP3T3B1M1REH	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	13.97 mm	20 V	SPDT
E-Switch 100SP3T2B4M2RE	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	Unthreaded		On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	5.08 mm	20 V	SPDT	Through Hole
E-Switch 100SP3T1B4M7RE	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	Unthreaded		On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	10.41 mm	20 V	SPDT	Right Angle, Through Hole, Vertical
