Description
General part information

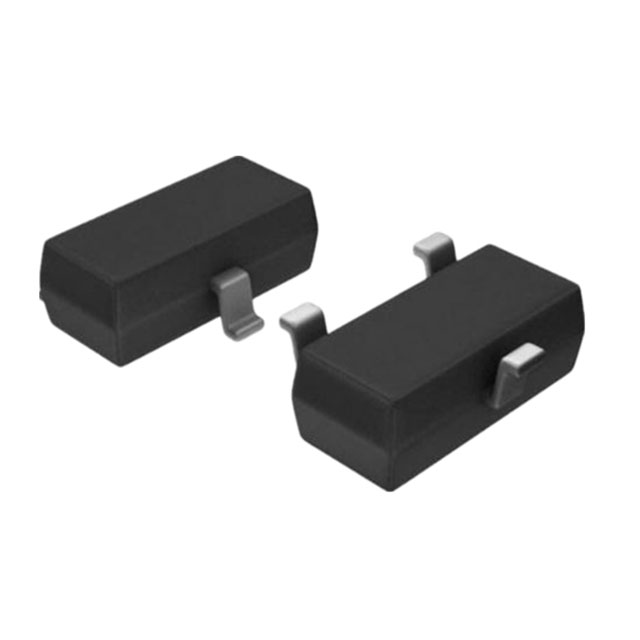

ESD0502TL
Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD0502TL |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.4 pF |
| Current - Peak Pulse | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-236-3, SOT-23-3, SC-59, SOT-23 |
| Package Name | SOT-23 |
| Power - Peak Pulse | 60 W |
| Power Line Protection | Yes |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6 V |
| Voltage - Reverse Standoff (Max) | 5 V |
