Description
General part information

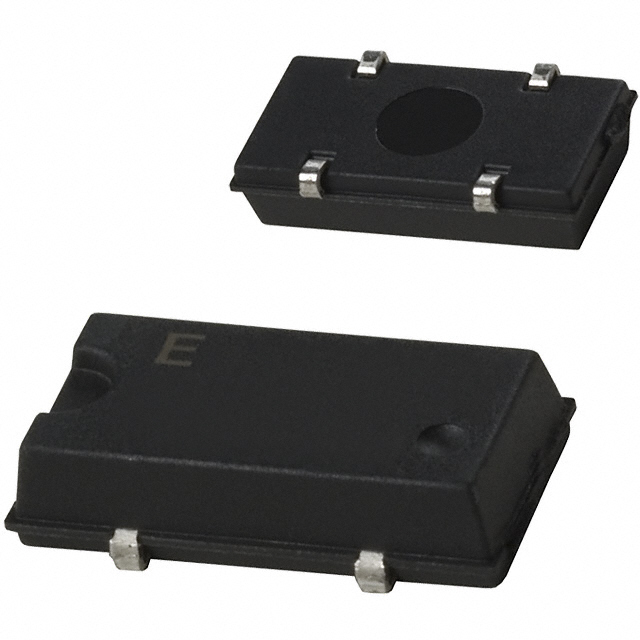

SG-636PCE 2.4576MC3:ROHS
2.4576 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SOJ, 5.08mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-636PCE 2.4576MC3:ROHS |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 5 mA |
| Current - Supply (Max) | 9 mA |
| Frequency | 2.4576 MHz |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.106 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS |
| Package / Case | 5.08mm pitch, 4-SOJ |
| Package Name | 4-SOJ |
| Package Pitch | 0.2 in |
| Size / Dimension Length | 0.413 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
