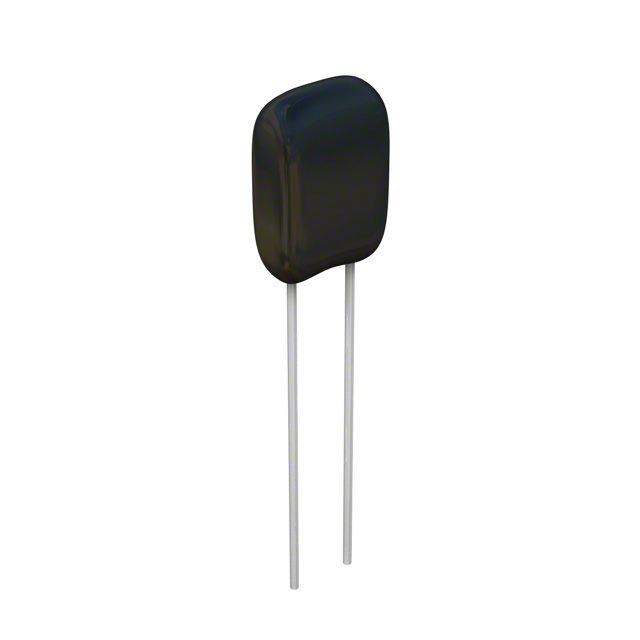

DLR1D33J-F
ObsoleteCornell Dubilier Knowles
CAP FILM 3300PF 5% 100VDC RADIAL
DLR1D33J-F
ObsoleteCornell Dubilier Knowles
CAP FILM 3300PF 5% 100VDC RADIAL
Description
General part information
DLR1D33J-F
3300 pF Film Capacitor 63V 100V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DLR1D33J-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 3300 pF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.413 in |
| Lead Spacing | 0.138 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.138 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
