770854-3
ActiveTE Connectivity AMP Connectors

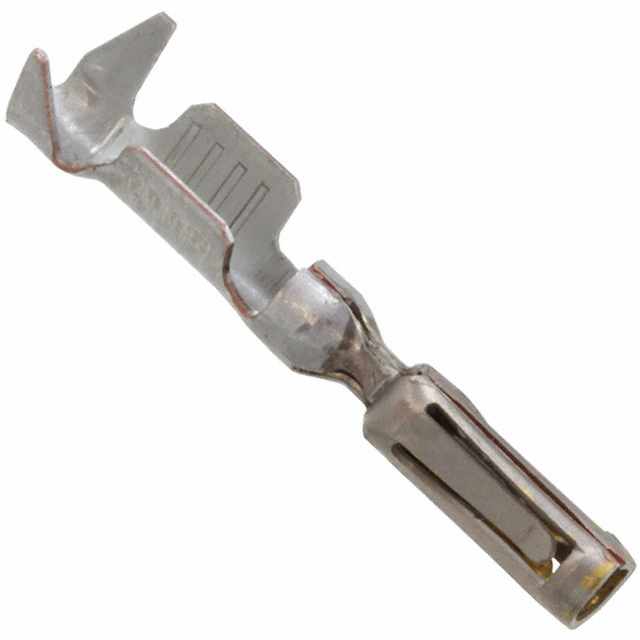

CONN SOCKET 16-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770854-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET 16-20AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770854-3 | 770854 Series |
|---|---|---|
| Contact Finish | Gold | Tin, Gold |
| Contact Finish Thickness | 0.75 µm | 0.75 µm |
| Contact Finish Thickness | 29.5 µin | 29.5 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
770854 Series
CONN SOCKET 16-20AWG CRIMP TIN
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.02 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.63 | |||
| 3000 | $ 0.58 | |||
Description
General part information
770854 Series
Socket Contact Gold 16-20 AWG Crimp
