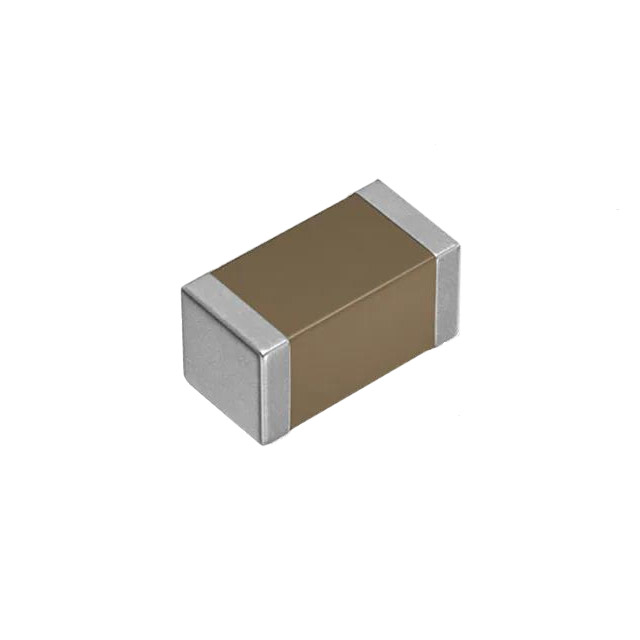

C1608X5R1H102K080AA
ActiveTDK Corporation
CAP, 1000PF, 50V, MLCC, 0603 ROHS COMPLIANT: YES
C1608X5R1H102K080AA
ActiveTDK Corporation
CAP, 1000PF, 50V, MLCC, 0603 ROHS COMPLIANT: YES
Description
General part information
C1608X5R1H102K080AA
1000 pF ±10% 50V Ceramic Capacitor X5R 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C1608X5R1H102K080AA |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 1000 pF |
| Features | Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.037 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 V |
