GLF71301T

Active

GLF Integrated Power

NANO-CURRENT CONSUMED PWR SWITCH

Search across all available documentation for this part.

Active

GLF Integrated Power

NANO-CURRENT CONSUMED PWR SWITCH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GLF71301T	GLF71301 Series

Current - Output (Max) [Max]	1.5 A	1.5 - 2 A
Features	-	Slew Rate Controlled, Load Discharge
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	-	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	High Side	High Side
Package / Case	WLCSP, 4-XFBGA	WLCSP, 4-XFBGA
Ratio - Input:Output	-	1:1
Rds On (Typ)	34 mOhm	34 mOhm
Supplier Device Package	4-WLCSP	4-WLCSP
Supplier Device Package [x]	0.77	0.77
Supplier Device Package [y]	0.77	0.77
Switch Type	-	General Purpose
Voltage - Load	-	1.1 V
Voltage - Load	-	5.5 V
Voltage - Supply (Vcc/Vdd)	-	False
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.1 V	1.1 V

NANO-CURRENT CONSUMED POWER SWIT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switch Type	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Features	Ratio - Input:Output [custom]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Rds On (Typ)	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Output Configuration	Package / Case
GLF Integrated Power GLF71301H	85 °C	-40 °C	General Purpose	1	Surface Mount	2 A	Load Discharge, Slew Rate Controlled	1:1	4-WLCSP	0.77	0.77	34 mOhm	1.1 V	5.5 V
GLF Integrated Power GLF71301	85 °C	-40 °C			Surface Mount	1.5 A			4-WLCSP	0.77	0.77	34 mOhm			1.1 V	5.5 V	High Side
GLF Integrated Power GLF71301T	85 °C	-40 °C			Surface Mount	1.5 A			4-WLCSP	0.77	0.77	34 mOhm			1.1 V	5.5 V	High Side	4-XFBGA, WLCSP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

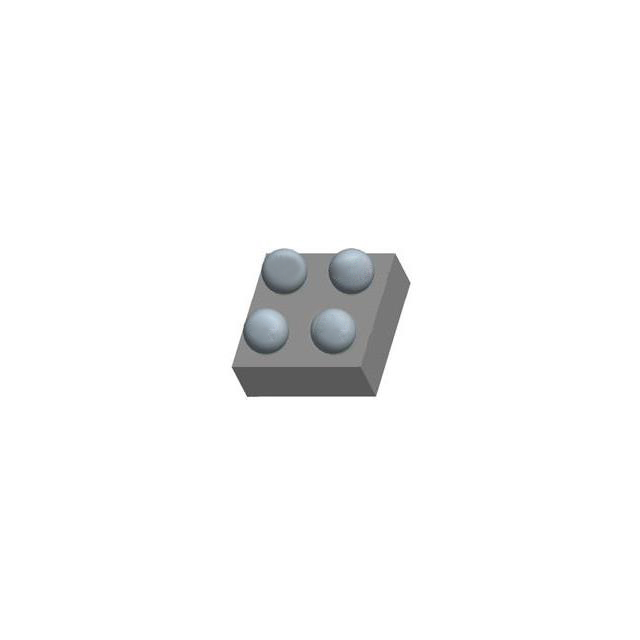

Power Switch/Driver 1.5A 4-WLCSP (0.77x0.77)
