74VCX1632245TBR
ActiveSTMicroelectronics

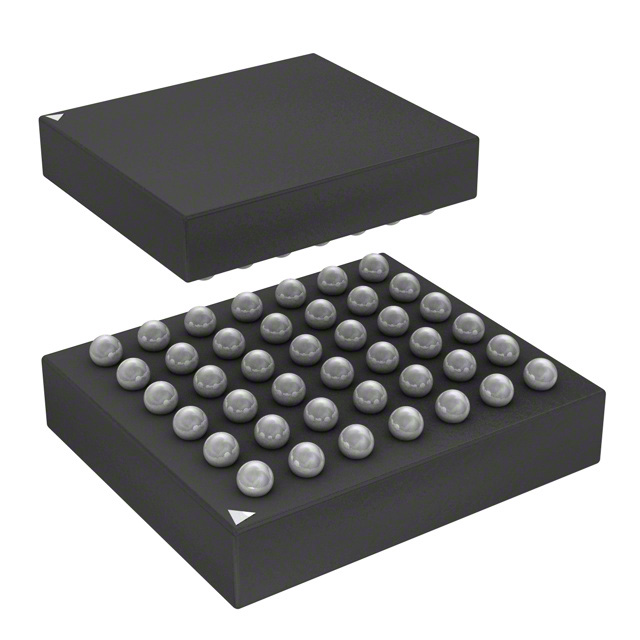

IC TRANSCEIVER 42TFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74VCX1632245TBR
ActiveSTMicroelectronics
IC TRANSCEIVER 42TFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74VCX1632245TBR |
|---|---|
| Current - Output High, Low [x] | 18 mA, 8 mA |
| Current - Output High, Low [y] | 18 mA, 8 mA |
| Logic Type | Translation Transceiver |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |
| Package / Case | 42-TFBGA |
| Supplier Device Package | 42-TFBGA (4x3.5) |
| Voltage - Supply [Max] | 2.7 V, 3.6 V |
| Voltage - Supply [Min] | 2.3 V, 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
74VCX1632245 Series
IC TRANSCEIVER 42TFBGA
| Part | Number of Bits per Element | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Current - Output High, Low [y] | Current - Output High, Low [x] | Number of Elements | Logic Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 74VCX1632245TBR | 8 | 3-State | 85 °C | -40 °C | Surface Mount | 42-TFBGA (4x3.5) | 8 mA, 18 mA | 8 mA, 18 mA | 2 | Translation Transceiver | 2.7 V, 3.6 V | 1.65 V, 2.3 V | 42-TFBGA |
Description
General part information
74VCX1632245 Series
Translation Transceiver 2 Element 8 Bit per Element 3-State Output 42-TFBGA (4x3.5)
