Description
General part information

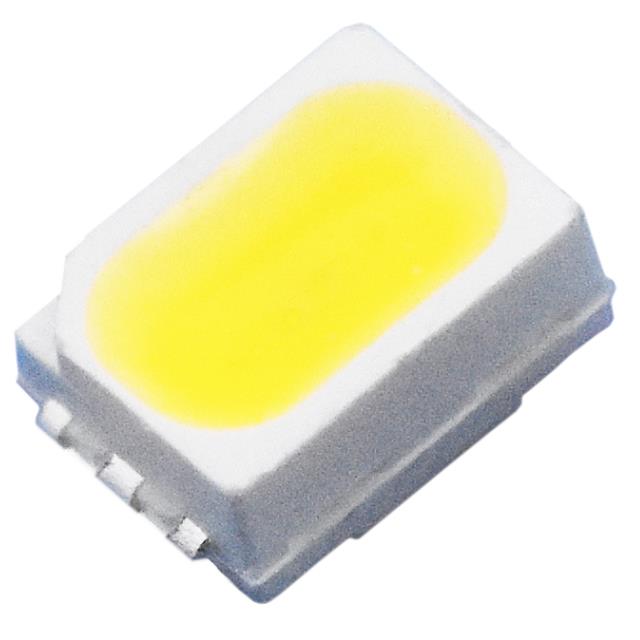

AL3020A-EWW-020MA
LED Lighting - White 3.25V 20mA 115° 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | AL3020A-EWW-020MA |
|---|---|
| Color | White |
| Current - Max | 30 mA |
| Current - Test | 20 mA |
| Flux | 8 lm |
| Height - Seated (Max) | 0.055 in |
| Lumens/Watt | 123 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension Length | 0.106 in |
| Size / Dimension Width | 0.079 in |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 3.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
