Description
General part information

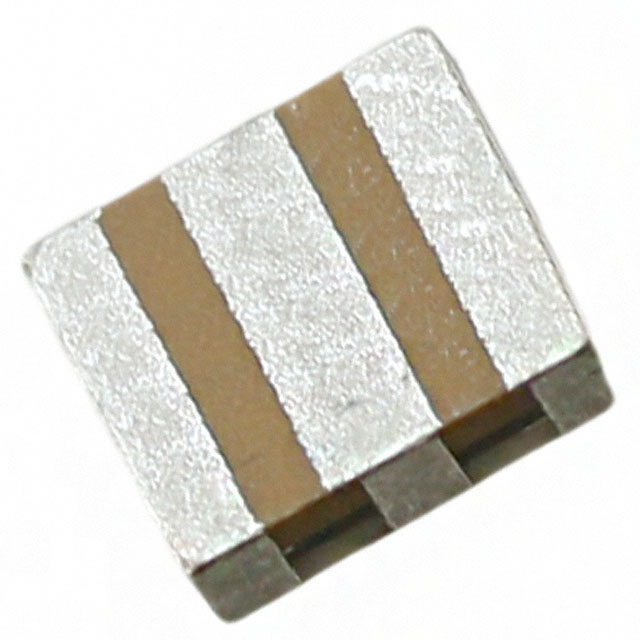

ECS-CR2-16.00-B-TR
16 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.3% -20°C ~ 80°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-CR2-16.00-B-TR |
|---|---|
| Capacitance | 15 pF |
| Features | Built in Capacitor |
| Frequency | 16 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Height | 0.059 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | No Lead, 3-SMD |
| Size / Dimension Length | 0.146 in |
| Size / Dimension Width | 0.122 in |
| Type | Ceramic |
