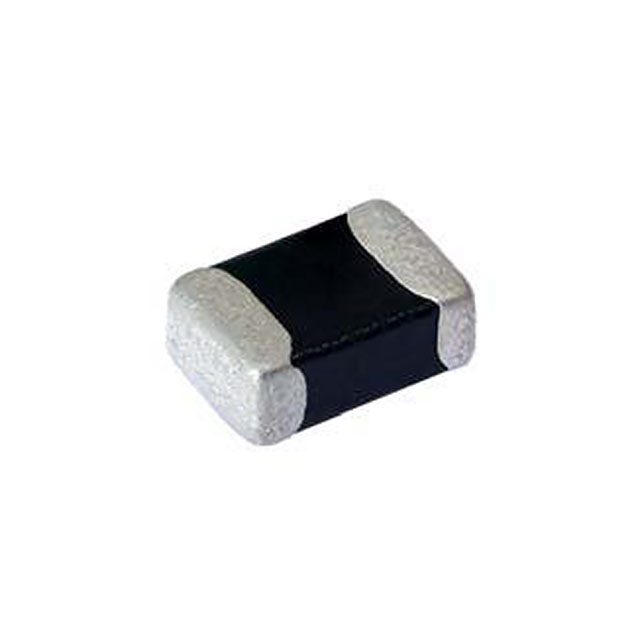

MLV0402E31103T
ActiveVishay General Semiconductor - Diodes Division
VARISTOR 18V 20A 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLV0402E31103T
ActiveVishay General Semiconductor - Diodes Division
VARISTOR 18V 20A 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLV0402E31103T |
|---|---|
| Capacitance @ Frequency | 120 pF |
| Current - Surge | 20 A |
| Energy | 0.05 J |
| Maximum AC Volts [Max] | 11 V |
| Maximum DC Volts [Max] | 14 V |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Varistor Voltage (Max) [Max] | 20 V |
| Varistor Voltage (Min) [Min] | 16 V |
| Varistor Voltage (Typ) | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.23 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
| 5000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.26 | |||
| 25 | $ 0.23 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
| 5000 | $ 0.06 | |||
| Tape & Reel (TR) | 10000 | $ 0.05 | ||
| 30000 | $ 0.05 | |||
| 50000 | $ 0.04 | |||
| 100000 | $ 0.04 | |||
Description
General part information
MLV0402 Series
18 V 20 A Varistor 1 Circuit Surface Mount 0402 (1005 Metric)
Documents
Technical documentation and resources
