151-03547
ActiveHELLERMANNTYTON

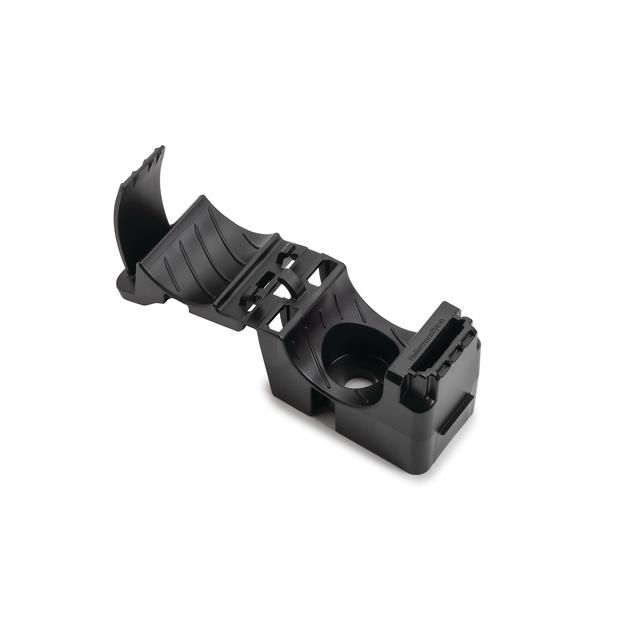

CABLE MOUNTING & ACCESSORIES BOLT MOUNT RATCHET CLAMP FOR HIGH TORQUE, 0.76 - 1.42" BUNDLE, 0.26" HOLE, PA66HIRHSUV, BK, 150/BG
151-03547
ActiveHELLERMANNTYTON
CABLE MOUNTING & ACCESSORIES BOLT MOUNT RATCHET CLAMP FOR HIGH TORQUE, 0.76 - 1.42" BUNDLE, 0.26" HOLE, PA66HIRHSUV, BK, 150/BG
Description
General part information
151-03547
Cable Clip, C-Type Black Fastener 0.760" ~ 1.420" (19.30mm ~ 36.07mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 151-03547 |
|---|---|
| Color | Black |
| Height | 1.2 in |
| Length | 4.93 in |
| Material | Nylon 6, 6, Polyamide (PA66) |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Fastener |
| Opening Size (Max) | 1.42 in |
| Opening Size (Min) | 0.76 in |
| Panel Hole Size | 0.26 in |
| Type | Clip, C-Type |
| Type Attributes | Locking |
| Width | 1.38 in |
