Samsung Semiconductor, Inc.

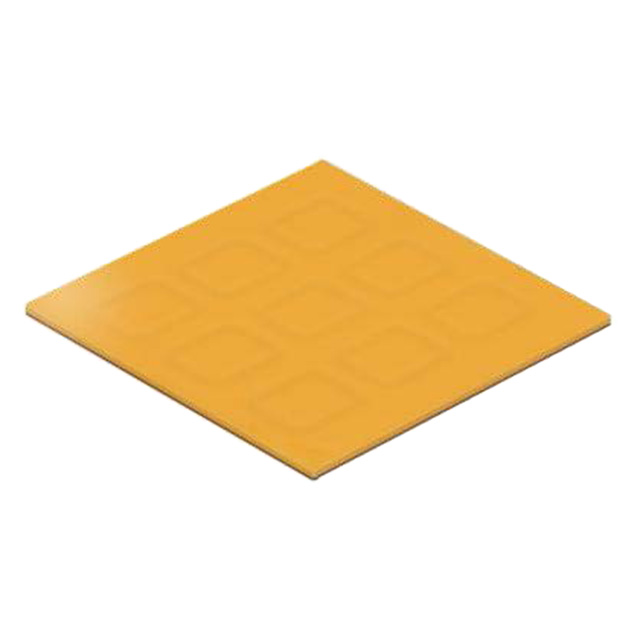

LED LH309A COOL WHT 6500K 12CSP

Search across all available documentation for this part.

Samsung Semiconductor, Inc.

LED LH309A COOL WHT 6500K 12CSP

Technical Specifications

Parameters and characteristics for this part

Specification	SCA7PT78HAL9PTAJEP

CCT (K)	6500 K
Color	Cool, White
CRI (Color Rendering Index)	70
Current - Max [Max]	250 mA
Current - Test	150 mA
Flux @ 85°C, Current - Test	568 lm
Height - Seated (Max) [Max]	0.016 in
Height - Seated (Max) [Max]	0.4 mm
Lumens/Watt @ Current - Test	146 lm/W
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	12-CSP
Thermal Resistance of Package [custom]	1.2 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	26 V

LED LH309A COOL WHT 6500K 12CSP

Part	Flux @ 85°C, Current - Test	Thermal Resistance of Package [custom]	Current - Max [Max]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lumens/Watt @ Current - Test	CCT (K)	Package / Case	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Mounting Type	CRI (Color Rendering Index)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Samsung Semiconductor, Inc. SCA7PT78HAL9PTAJEP	568 lm	1.2 °C/W	250 mA	150 mA	0.197 in	5 mm	0.197 "	5 mm	120 °	146 lm/W	6500 K	2020	5050 Metric	Cool, White	26 V	Surface Mount	70	12-CSP	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LH309A White, Cool 6500K 26V 150mA 120° 2020 (5050 Metric)
