1520-ARO
ActiveBRADY

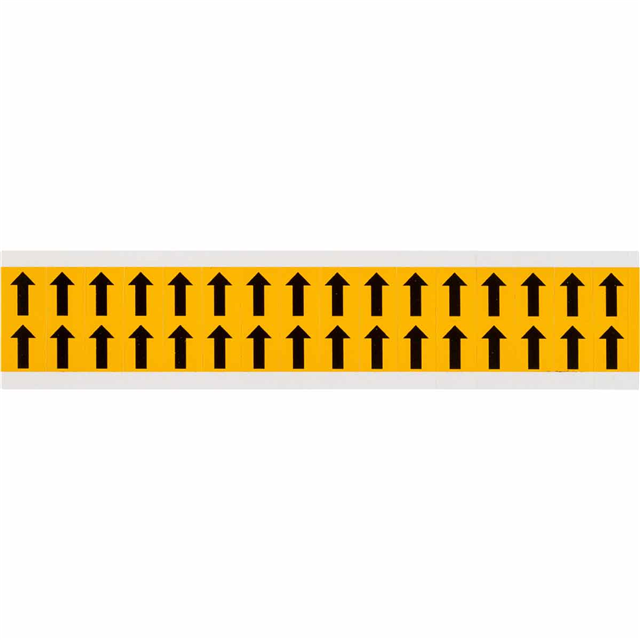

B946 N&L BLK/YEL 1520-ARO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1520-ARO
ActiveBRADY
B946 N&L BLK/YEL 1520-ARO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1520-ARO | 1520 Series |
|---|---|---|
| Application Specifics | Directionality | Alpha/Numeric, Notice, Directionality, Safety |
| Applications | General | General |
| Arrangement | Symbol and Text | Text Only, Symbol and Text |
| Color - Background | Yellow | Yellow |
| Color - Legend | Black | Black |
| Features | Chemical Resistant, Abrasion Resistant, Weather Resistant, UV Resistant | Chemical Resistant, Abrasion Resistant, Weather Resistant, UV Resistant |
| Language | - | English |
| Legend (Symbol Only) | Directional Arrow | Directional Arrow |
| Legend (Symbol Only) | - | False |
| Legend (Text) | Arrow Symbol | Q, F, C, B, E, L, K, O, N, P, U, A, T, M, A to Z, G, I, Arrow Symbol, H, 1, W, D |
| Length | 19.05 mm | 19.05 mm |
| Length | 0.75 in | 0.75 in |
| Location | Indoor/Outdoor | Indoor/Outdoor |
| Material - Body | Vinyl | Vinyl |
| Mounting Type | Adhesive | Adhesive |
| Print Type | Pre-Printed | Pre-Printed |
| Shape | Rectangle | Rectangle |
| Width [y] | 14.3 mm | 14.3 mm |
| Width [y] | 0.563 in | 0.563 in |
1520 Series
B946 N&L BLK/YEL 1520-Q
| Part | Features | Applications | Print Type | Legend (Text) | Width [y] | Width [y] | Location | Legend (Symbol Only) | Shape | Application Specifics | Language | Material - Body | Arrangement | Length | Length | Color - Background | Mounting Type | Color - Legend | Legend (Symbol Only) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 1520-Q | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | Q | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-F | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | F | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-C | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | C | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-B | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | B | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-E | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | E | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-L | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | L | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-K | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | K | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-O | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | O | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-N | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | N | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black | ||
BRADY 1520-P | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | General | Pre-Printed | P | 14.3 mm | 0.563 in | Indoor/Outdoor | Rectangle | Alpha/Numeric | English | Vinyl | Text Only | 19.05 mm | 0.75 in | Yellow | Adhesive | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.34 | |
Description
General part information
1520 Series
B946 N&L BLK/YEL 1520-ARO
