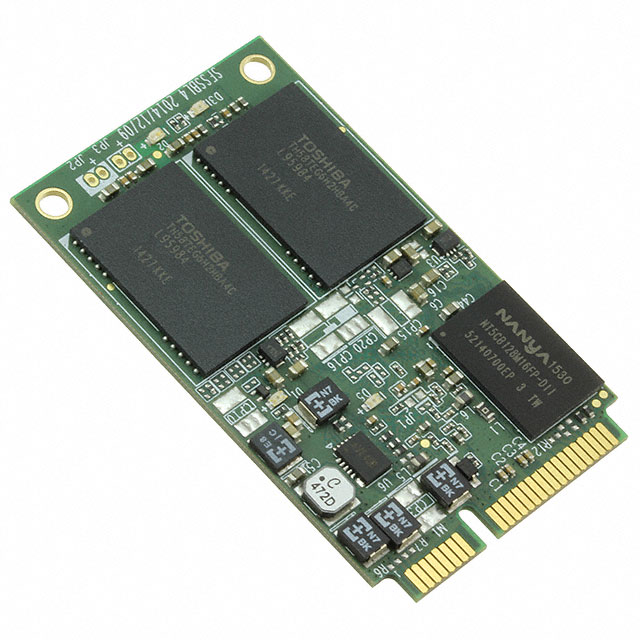

AF32GSSHI-VACXP

Active

ATP Electronics, Inc.

SSD 32GB MSATA SLC SATA III 3.3V

Search across all available documentation for this part.

Active

ATP Electronics, Inc.

SSD 32GB MSATA SLC SATA III 3.3V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 32GB SATA III mSATA 3.3V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AF32GSSHI-VACXP	AF32 Series

Form Factor	mSATA	mSATA, M.2 Module, Disk-On-Module, eUSB, Slim-SATA
Form Factor	-	2.5 in
Memory Size	32 GB	32 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)	Solid State Drive (SSD) FLASH - NAND (MLC), Solid State Drive (SSD) FLASH - NAND (SLC), CompactFlash®, microSD™, CFast, SDHC™
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Size / Dimension [x]	2 in	2 - 100 in
Size / Dimension [y]	29.8 mm	22 - 69.9 mm
Size / Dimension [z]	3.7 mm	3.5 - 9.7 mm
Speed	-	Class 10
Speed - Read	530 MB/s	21 - 530 MB/s
Speed - Write	430 MB/s	18 - 440 MB/s
Technology	-	SLC, MLC
Type	SATA III	SATA III
Voltage - Supply	3.3 V	3.3 V

SSD 32GB MSATA MLC SATA II

Part	Memory Size	Speed - Read	Speed - Write	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Form Factor	Type	Technology	Speed	Form Factor
ATP Electronics, Inc. AF32GSAHI-OEM	32 GB	250 MB/s	190 MB/s	3.7 mm	2 in	29.8 mm	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	mSATA
ATP Electronics, Inc. AF32GSSIB-OEM	32 GB	530 MB/s	390 MB/s	3.5 mm	60 mm	22 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	M.2 Module	SATA III
ATP Electronics, Inc. AF32GSSHJ-OEM	32 GB	80 MB/s	65 MB/s	3.7 mm	26.8 mm	29.85 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	mSATA
ATP Electronics, Inc. AF32GSSGH-AACXP	32 GB	21 MB/s	18 MB/s	9.7 mm	36.9 mm	26.6 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	Disk-On-Module, eUSB
ATP Electronics, Inc. AF32GCFI-TABXP	32 GB						85 °C	-40 °C	CompactFlash®			SLC
ATP Electronics, Inc. AF32GUD3-OEM	32 GB						85 °C	-25 °C	microSD™			MLC	Class 10
ATP Electronics, Inc. AF32GSSIA-VAAXP	32 GB	530 MB/s	400 MB/s	3.5 mm	42 mm	22 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	M.2 Module	SATA III
ATP Electronics, Inc. AF32GSSCD-OEM	32 GB	182 MB/s	133 MB/s				85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)					2.5 in
ATP Electronics, Inc. AF32GSSCJ-VACXP	32 GB	520 MB/s	420 MB/s	9.2 mm	100 mm	69.9 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)		SATA III			2.5 in
ATP Electronics, Inc. AF32GSMGH-AAAXP	32 GB						85 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	Disk-On-Module, eUSB
