FIT0489-B

Active

DFRobot

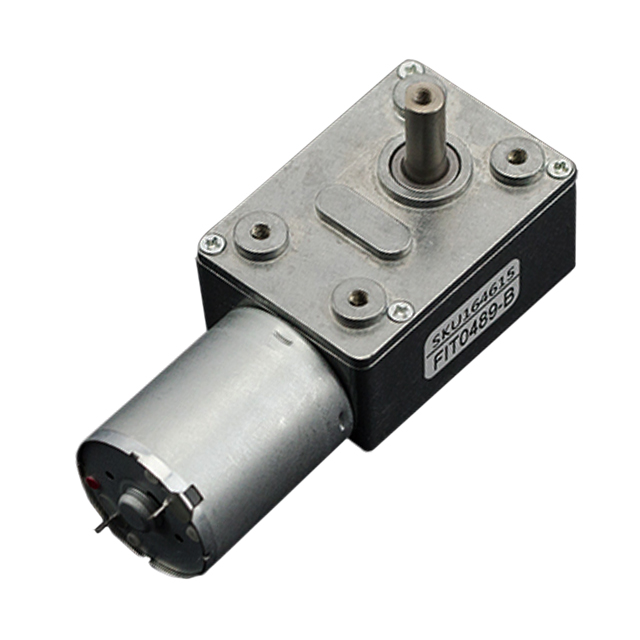

TURBO METAL GEAR WORM MOTOR (6V 40RPM 10KG/CM)

Search across all available documentation for this part.

Active

DFRobot

TURBO METAL GEAR WORM MOTOR (6V 40RPM 10KG/CM)

Technical Specifications

Parameters and characteristics commom to parts in this series

TURBO METAL GEAR WORM MOTOR (12V 160RPM 2.2KG.CM)

Part	Type	RPM	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Power - Rated	Termination Style	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Weight	Weight	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Gear Reduction Ratio
DFRobot FIT0489-C	DC Motor	160 RPM	6 mm	0.236 in	1.1 W	Solder Tab	53.94 mNm	7.64 oz-in	0.364 lb	165.11 g	0.728 in	18.5 mm	12 VDC	37.3
DFRobot FIT0489-B	DC Motor	40 RPM	6 mm	0.236 in		Solder Tab	245.2 mNm	34.72 oz-in	0.35 lb	160 g	0.728 in	18.5 mm	6 VDC	150
DFRobot FIT0489-D	DC Motor	40 RPM	6 mm	0.236 in	1.1 W	Solder Tab	215.8 mNm	30.55 oz-in	0.364 lb	165.11 g	0.728 in	18.5 mm	12 VDC	150

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 18.90
Digikey	Bulk	1	$ 18.90

General part information

DC Motor Gearmotor 40 RPM 6VDC

Technical documentation and resources
