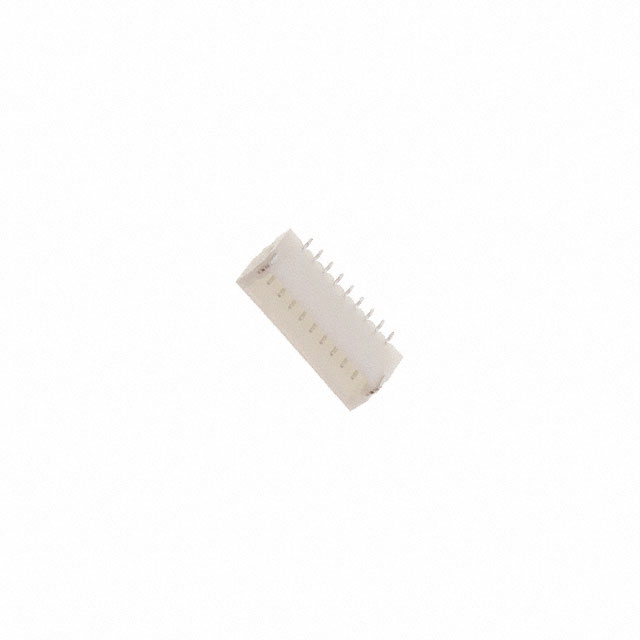

1SH-A-09-TR-SMT

Active

Adam Tech

CONN HEADER SMD R/A 9POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

1SH-A-09-TR-SMT

Active

Adam Tech

CONN HEADER SMD R/A 9POS 1MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.99
		50	$ 0.70
		100	$ 0.66

Description

General part information

1SH-A Series

Connector Header Surface Mount, Right Angle 9 position 0.039" (1.00mm)

Documents

Technical documentation and resources

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Datasheet

Specification	1SH-A-09-TR-SMT	1SH-A Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Friction Lock	Friction Lock
Features	Solder Retention	Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.114 "	0.114 - 0.167 in
Insulation Height	2.9 mm	2.9 - 4.25 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Surface Mount, Right Angle
Number of Positions	9	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	50 VAC	50 VAC

Part

Features

Number of Positions

Number of Positions Loaded

Shrouding

Pitch - Mating

Contact Shape

Operating Temperature [Min]

Operating Temperature [Max]

Number of Rows

Termination

Connector Type

Insulation Color

Mounting Type

Contact Type

Voltage Rating

Insulation Height

Contact Material

Style

Material Flammability Rating

Fastening Type

Contact Finish - Post

Adam Tech

1SH-A-08-TS-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount

Male Pin

50 VAC

0.167 in

4.25 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-05-TS-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount

Male Pin

50 VAC

0.167 in

4.25 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-07-TR-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount, Right Angle

Male Pin

50 VAC

0.114 "

2.9 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-04-TS-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount

Male Pin

50 VAC

0.167 in

4.25 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-03-TR-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount, Right Angle

Male Pin

50 VAC

0.114 "

2.9 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-10-TR-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount, Right Angle

Male Pin

50 VAC

0.114 "

2.9 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-02-TS-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount

Male Pin

50 VAC

0.167 in

4.25 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-05-TR-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount, Right Angle

Male Pin

50 VAC

0.114 "

2.9 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-04-TR-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount, Right Angle

Male Pin

50 VAC

0.114 "

2.9 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Adam Tech

1SH-A-06-TS-SMT

Solder Retention

All

Shrouded - 4 Wall

0.039 in

1 mm

Square

-25 °C

85 °C

Solder

Header

Natural

Surface Mount

Male Pin

50 VAC

0.167 in

4.25 mm

Brass

Board to Cable/Wire

UL94 V-0

Friction Lock

Tin

Part	Features	Number of Positions	Number of Positions Loaded	Shrouding	Pitch - Mating	Pitch - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Termination	Connector Type	Insulation Color	Mounting Type	Contact Type	Voltage Rating	Insulation Height	Insulation Height	Contact Material	Style	Material Flammability Rating	Fastening Type	Contact Finish - Post
Adam Tech 1SH-A-08-TS-SMT	Solder Retention	8	All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount	Male Pin	50 VAC	0.167 in	4.25 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-05-TS-SMT	Solder Retention		All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount	Male Pin	50 VAC	0.167 in	4.25 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-07-TR-SMT	Solder Retention	7	All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount, Right Angle	Male Pin	50 VAC	0.114 "	2.9 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-04-TS-SMT	Solder Retention	4	All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount	Male Pin	50 VAC	0.167 in	4.25 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-03-TR-SMT	Solder Retention		All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount, Right Angle	Male Pin	50 VAC	0.114 "	2.9 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-10-TR-SMT	Solder Retention	10	All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount, Right Angle	Male Pin	50 VAC	0.114 "	2.9 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-02-TS-SMT	Solder Retention	2	All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount	Male Pin	50 VAC	0.167 in	4.25 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-05-TR-SMT	Solder Retention		All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount, Right Angle	Male Pin	50 VAC	0.114 "	2.9 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-04-TR-SMT	Solder Retention	4	All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount, Right Angle	Male Pin	50 VAC	0.114 "	2.9 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
Adam Tech 1SH-A-06-TS-SMT	Solder Retention	6	All	Shrouded - 4 Wall	0.039 in	1 mm	Square	-25 °C	85 °C	1	Solder	Header	Natural	Surface Mount	Male Pin	50 VAC	0.167 in	4.25 mm	Brass	Board to Cable/Wire	UL94 V-0	Friction Lock	Tin
