PE91195
ObsoletePasternack
4.1/9.5 MINI DIN MALE TO 4.1/9.5
PE91195
ObsoletePasternack
4.1/9.5 MINI DIN MALE TO 4.1/9.5
Description
General part information
PE91195

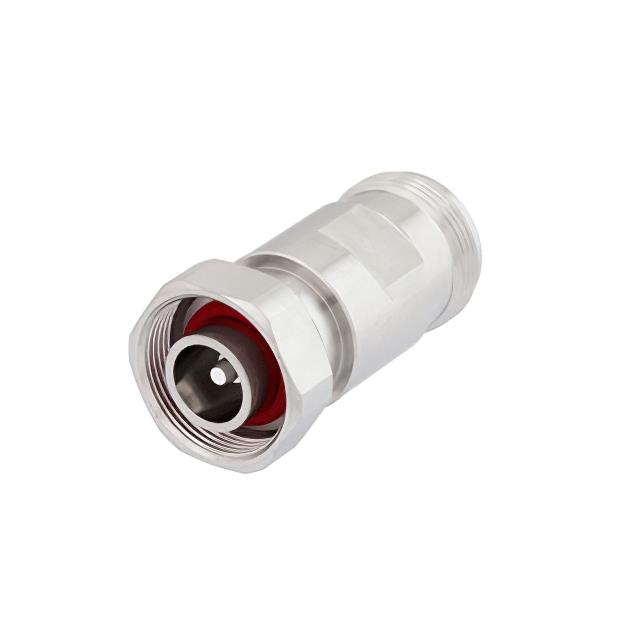

Adapter Coaxial Connector 4.1/9.5 Plug, Male Pin To 4.1/9.5 Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91195 |
|---|---|
| Adapter Series | 4.1/9.5 to 4.1/9.5 |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 4.1, 9.5 Plug, Male Pin |
| Convert From (Adapter End) Pin Gender | Male |
| Convert From (Adapter End) Type | Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 4.1/9.5 Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
