General part information

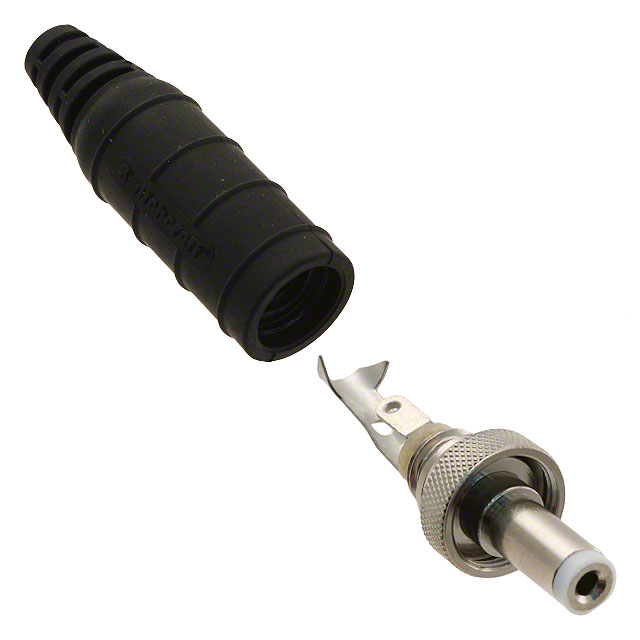

DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip
Technical documentation and resources
Parameters and characteristics for this part
| Specification | S761KS15 |
|---|---|
| Actual Diameter [diameter] | 0.079 in, 0.217 in |
| Actual Diameter [diameter] | 5.5 mm, 2 mm |
| Body Color | Silver, Black |
| Body Material | Copper Alloy |
| Connector Type | Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 5 A |
| Features | Cable Clamp, Thread Lock |
| Gender | Female |
| Housing Material | Thermoplastic |
| Includes | 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm |
| Ingress Protection | IP68 |
| Insulation Color | White |
| Internal Switch(s) | False |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 30 V |
DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip
| Part | Body Color | Current Rating (Amps) | Body Material | Gender | Ingress Protection | Contact Material | Termination | Internal Switch(s) | Features | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Contact Material - Plating | Voltage - Rated | Shielding | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Includes | Mounting Type | Insulation Color | Housing Material | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. S761KS15 | Black, Silver | 5 A | Copper Alloy | Female | IP68 | Copper Alloy | Solder Eyelet(s) | Cable Clamp, Thread Lock | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Tin | 30 V | Unshielded | 2 | 2 | 1 Connector, 1 Handle | Free Hanging (In-Line) | White | Thermoplastic | 0.079 in, 0.217 in | 2 mm, 5.5 mm | Plug |
