1-88637-1

Active

TE Connectivity AMP Connectors

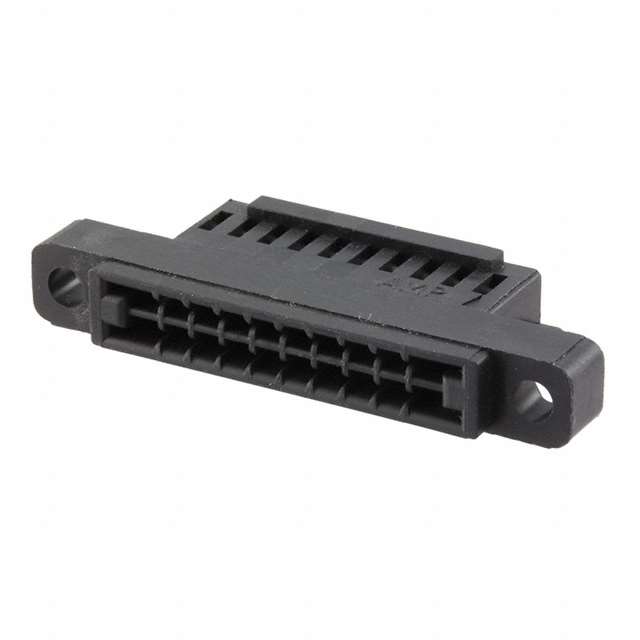

CONN FFC RCPT HSG 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-88637-1

Active

TE Connectivity AMP Connectors

CONN FFC RCPT HSG 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4200	$ 3.36

Description

General part information

88637 Series

Housing FFC, Discrete Wire Housing for Female Contacts Connector Detent Lock 20Pos 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-88637-1	88637 Series

Connector Type	Housing for Female Contacts	Housing for Female Contacts
Current Rating (Amps)	1.5 A	1.5 A
Features	Positions Stamped, Flange	Positions Stamped, Flange
FFC, FCB Thickness	0.015 mm	0.015 mm
Flat Flex Type	FFC, Discrete Wire	FFC, Discrete Wire
Housing Color	Black	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Insulation Diameter [diameter]	0.069 in	0.069 in
Insulation Diameter [diameter]	1.75 mm	1.75 mm
Locking Feature	Detent Lock	Detent Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Note	Contacts Not Included	Contacts Not Included
Number of Positions	20	18 - 70
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	32 AWG	32 AWG
Wire Gauge [Min]	22 AWG	22 AWG

88637 Series

CONN FFC RCPT HSG 28POS 2.54MM

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Housing Material	Number of Positions	Locking Feature	Flat Flex Type	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Number of Rows	Housing Color	Connector Type	Note	Pitch [x]	Pitch [x]	Current Rating (Amps)	Insulation Diameter [diameter]	Insulation Diameter [diameter]	FFC, FCB Thickness	Number of Positions
TE Connectivity AMP Connectors 1-88637-7	Flange, Positions Stamped	-65 ░C	105 ░C	UL94 V-0	Polyamide (PA), Nylon, Glass Filled	28	Detent Lock	FFC, Discrete Wire	32 AWG	22 AWG	300 VDC	2	Black	Housing for Female Contacts	Contacts Not Included	2.54 mm	0.1 in	1.5 A	0.069 in	1.75 mm	0.015 mm
TE Connectivity AMP Connectors 1-88637-0	Flange, Positions Stamped	-65 ░C	105 ░C	UL94 V-0	Polyamide (PA), Nylon, Glass Filled	18	Detent Lock	FFC, Discrete Wire	32 AWG	22 AWG	300 VDC	2	Black	Housing for Female Contacts	Contacts Not Included	2.54 mm	0.1 in	1.5 A	0.069 in	1.75 mm	0.015 mm
TE Connectivity AMP Connectors 88637-3	Flange, Positions Stamped	-65 ░C	105 ░C	UL94 V-0	Polyamide (PA), Nylon, Glass Filled		Detent Lock	FFC, Discrete Wire	32 AWG	22 AWG	300 VDC	2	Black	Housing for Female Contacts	Contacts Not Included	2.54 mm	0.1 in	1.5 A	0.069 in	1.75 mm	0.015 mm	16
TE Connectivity AMP Connectors 88637-9	Flange, Positions Stamped	-65 ░C	105 ░C	UL94 V-0	Polyamide (PA), Nylon, Glass Filled	18	Detent Lock	FFC, Discrete Wire	32 AWG	22 AWG	300 VDC	2	Black	Housing for Female Contacts	Contacts Not Included	2.54 mm	0.1 in	1.5 A	0.069 in	1.75 mm	0.015 mm
TE Connectivity AMP Connectors 1-88637-1	Flange, Positions Stamped	-65 ░C	105 ░C	UL94 V-0	Polyamide (PA), Nylon, Glass Filled	20	Detent Lock	FFC, Discrete Wire	32 AWG	22 AWG	300 VDC	2	Black	Housing for Female Contacts	Contacts Not Included	2.54 mm	0.1 in	1.5 A	0.069 in	1.75 mm	0.015 mm
TE Connectivity AMP Connectors 3-88637-5	Flange, Positions Stamped	-65 ░C	105 ░C	UL94 V-0	Polyamide (PA), Nylon, Glass Filled	70	Detent Lock	FFC, Discrete Wire	32 AWG	22 AWG	300 VDC	2	Black	Housing for Female Contacts	Contacts Not Included	2.54 mm	0.1 in	1.5 A	0.069 in	1.75 mm	0.015 mm
TE Connectivity AMP Connectors 3-88637-0	Flange, Positions Stamped	-65 ░C	105 ░C	UL94 V-0	Polyamide (PA), Nylon, Glass Filled	58	Detent Lock	FFC, Discrete Wire	32 AWG	22 AWG	300 VDC	2	Black	Housing for Female Contacts	Contacts Not Included	2.54 mm	0.1 in	1.5 A	0.069 in	1.75 mm	0.015 mm
