T489D476M025ATE250

T489D476M025ATE250

Active
KEMET

CAP TANT SOLID 47UF 25V D CASE 20%( 7.3 X 4.3 X 2.8MM) INWARD L SMD 7343-31 0.25 OHM 125°C T/R

Find alt
T489D476M025ATE250

T489D476M025ATE250

Active
KEMET

CAP TANT SOLID 47UF 25V D CASE 20%( 7.3 X 4.3 X 2.8MM) INWARD L SMD 7343-31 0.25 OHM 125°C T/R

Find alt

Description

General part information

T489D476M025ATE250

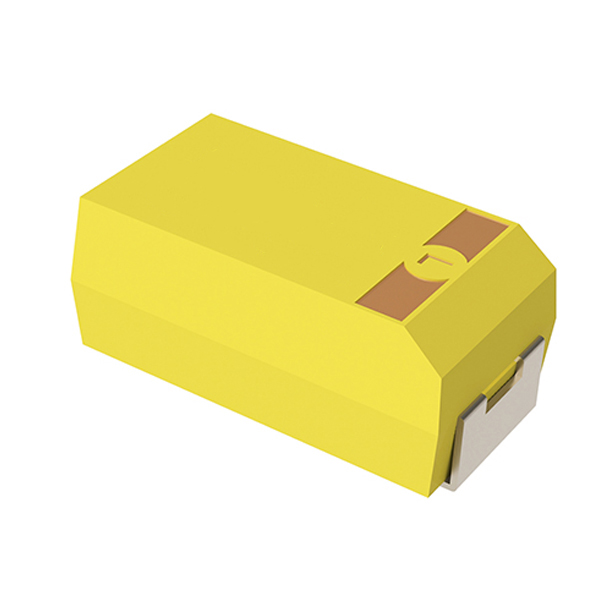

47 µF Molded Tantalum Capacitors 25 V 2917 (7343 Metric) 250mOhm @ 100kHz

Technical Specifications

Parameters and characteristics for this part

SpecificationT489D476M025ATE250
Capacitance47 µF
ESR (Equivalent Series Resistance)250 mOhm
FeaturesGeneral Purpose
Height - Seated (Max)0.122 in
Lifetime2000 Hrs
Manufacturer Size CodeD
Mounting TypeSurface Mount
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package / Case2917 (7343 Metric)
Size / Dimension Length0.287 in
Size / Dimension Width0.169 in
Tolerance20 %
TypeMolded
Voltage - Rated25 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
