W5100

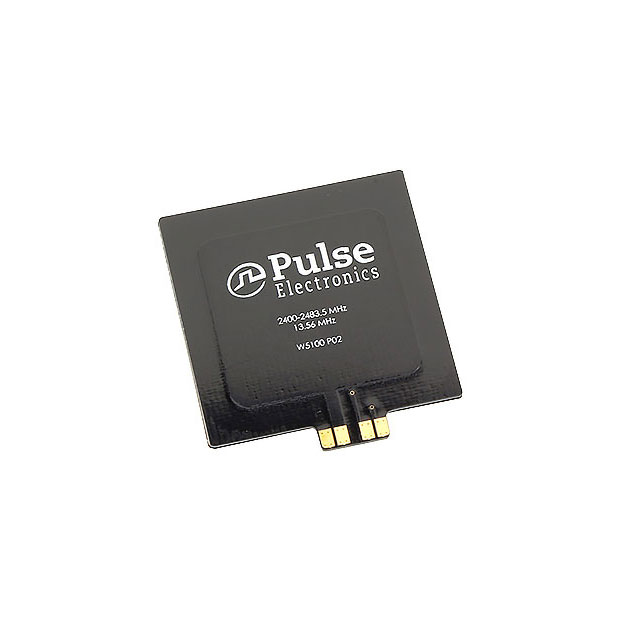

RF ANTENNA Bluetooth, WLAN, Zigbee™ Flat Patch Solder Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | W5100 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | WLAN, Bluetooth, Zigbee™ |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.48 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 1 dBi |
| Height (Max) | 0.047 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | Solder |
| VSWR | 3 |
