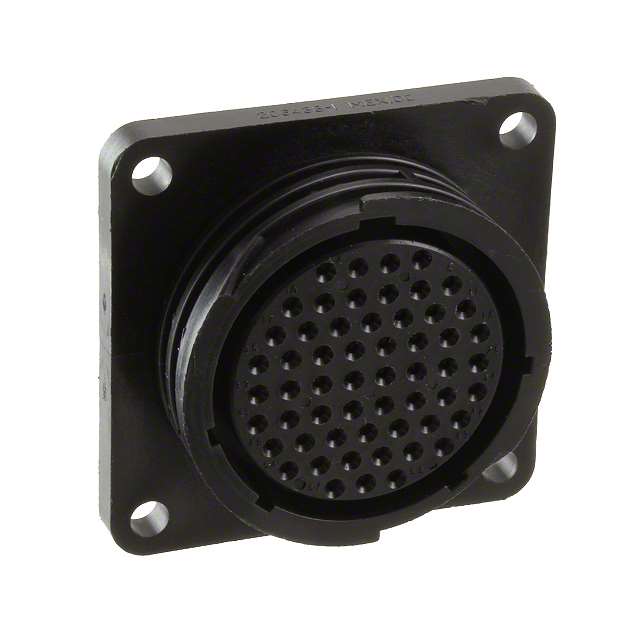

1-796329-1
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 57P GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-796329-1
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 57P GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-796329-1 | 796329 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 - 100 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 - 2.54 Ám |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 57 | 57 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Size - Insert [Max] | 57 | 57 |
| Shell Size - Insert [Min] | 23 | 23 |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
796329 Series
CONN RCPT FMALE 57P GOLD SOLDER
| Part | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Mounting Feature | Voltage Rating | Orientation | Color | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Connector Type | Contact Finish - Mating | Primary Material | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796329-3 | General Purpose | -40 °C | 105 ░C | 57 | Solder | Flange | 250 VDC | Keyed | Black | 23 | 57 | Receptacle, Female Sockets | Gold | Plastic | 7.5 A | Panel Mount, Through Hole | UL94 V-0 | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 1-796329-1 | General Purpose | -40 °C | 105 ░C | 57 | Solder | Flange | 250 VDC | Keyed | Black | 23 | 57 | Receptacle, Female Sockets | Gold | Plastic | 7.5 A | Panel Mount, Through Hole | UL94 V-0 | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 796329-4 | General Purpose | -40 °C | 105 ░C | 57 | Solder | Flange | 250 VDC | Keyed | Black | 23 | 57 | Receptacle, Female Sockets | Gold | Plastic | 7.5 A | Panel Mount, Through Hole | UL94 V-0 | 100 çin | 2.54 çm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 59.70 | |
| 12 | $ 50.10 | |||
| 36 | $ 46.37 | |||
| 60 | $ 44.73 | |||
| 108 | $ 42.91 | |||
Description
General part information
796329 Series
57 Position Circular Connector Receptacle, Female Sockets Solder
