Description
General part information

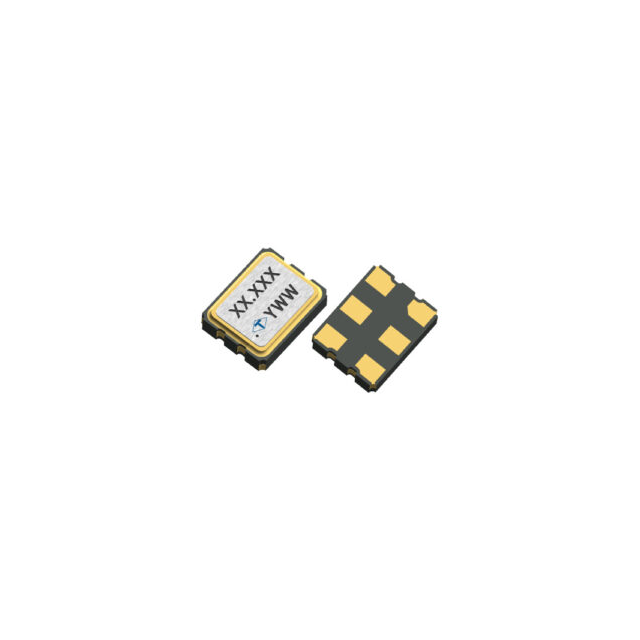

OAEMDLLANF-100.000000
100 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | OAEMDLLANF-100.000000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 18 mA |
| Current - Supply (Max) | 50 mA |
| Frequency | 100 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.041 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVPECL |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
