9420 010100

Active

Belden Inc.

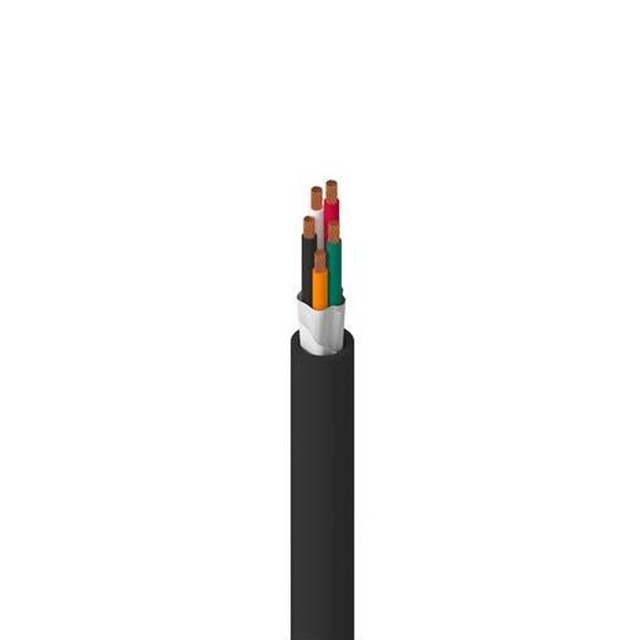

CABLE 5COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	9420 010100

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	0.506 in
Jacket (Insulation) Diameter [diameter]	12.85 mm
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.084 in
Jacket (Insulation) Thickness	2.134 mm
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	5
Ratings	UL Style SO
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	16 AWG

Part	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Ratings	Wire Gauge	Voltage	Usage	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Length [x]	Length [x]
Belden Inc. 9420 010100	Multi-Conductor	0.506 in	12.85 mm	0.084 in	2.134 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	34 AWG	65	Copper Bare	UL Style SO	16 AWG	600 V	Cord and Cordset	Rubber	5	Black	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 10.76

General part information

5 Conductor Multi-Conductor Cable Black 16 AWG 100.0' (30.5m)
