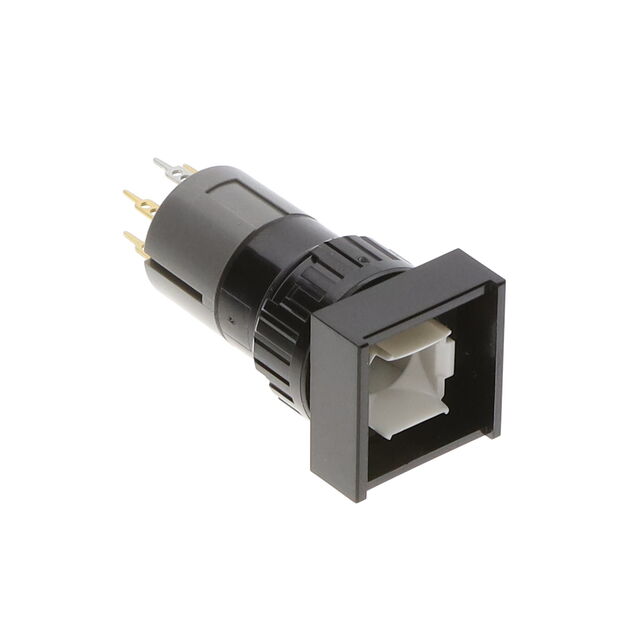

31-483.036

Active

EAO

SWITCH PB DPST-NO/NC 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	31-483.036

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SWITCH PB DPST-NO/NC 0.1A 42V

Part	Voltage Rating - AC	Ingress Protection	Voltage Rating - DC	Actuator Type	Mounting Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Circuit	Actuator Marking	Type	Switch Function	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
EAO 31-483.036	42 V	IP40	42 V	Square, Button (Not Included)	Panel Mount, Front	1000000 Cycles	16 mm	DPST-NO/NC	No Marking	Standard	Off-On, On-Off	PC Pin, Solder Lug	100 mA	55 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
