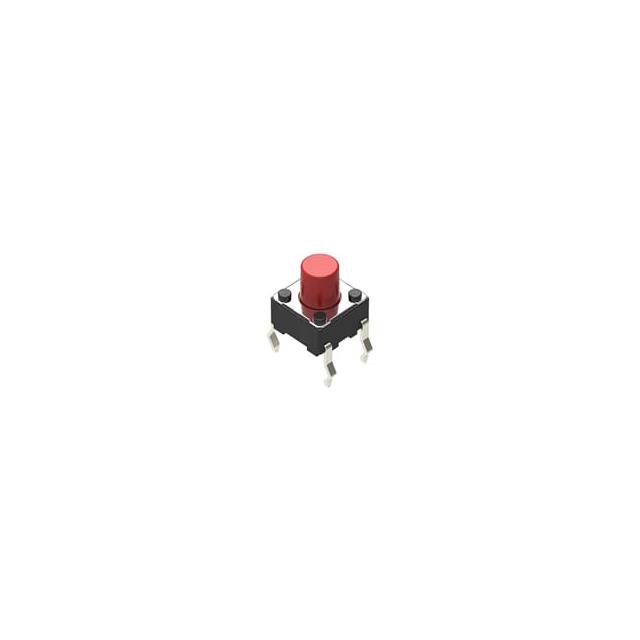

SWITCH, TACTILE, 6X6MM, VERT, RED

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH, TACTILE, 6X6MM, VERT, RED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SKHHBYA010	SKHHB Series

Actuator Height off PCB, Vertical	-	9.5 mm
Actuator Height off PCB, Vertical [z]	7 mm	7 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	200000 Cycles	200000 - 1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	260 gf	100 - 260 gf
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6 mm	6 mm
Outline [y]	6 mm	6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Orientation	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mechanical Life	Mounting Type	Outline [y]	Outline [x]	Switch Function	Actuator Height off PCB, Vertical [z]	Switch Travel	Illumination	Contact Rating @ Voltage	Operating Force	Actuator Height off PCB, Vertical
Alps Alpine SKHHBWA010	Top Actuated	Standard	PC Pin	90 °C	-40 °C	SPST-NO	500000 Cycles	Through Hole	6 mm	6 mm	Off-Mom	7 mm	0.25 mm	Non-Illuminated	0.05 A, 12 VDC
Alps Alpine SKHHBSA010	Top Actuated	Standard	PC Pin	90 °C	-40 °C	SPST-NO	200000 Cycles	Through Hole	6 mm	6 mm	Off-Mom		0.25 mm	Non-Illuminated	0.05 A, 12 VDC	260 gf	9.5 mm
Alps Alpine SKHHBYA010	Top Actuated	Standard	PC Pin	90 °C	-40 °C	SPST-NO	200000 Cycles	Through Hole	6 mm	6 mm	Off-Mom	7 mm	0.25 mm	Non-Illuminated	0.05 A, 12 VDC	260 gf
Alps Alpine SKHHBVA010	Top Actuated	Standard	PC Pin	90 °C	-40 °C	SPST-NO	1000000 Cycles	Through Hole	6 mm	6 mm	Off-Mom	7 mm	0.25 mm	Non-Illuminated	0.05 A, 12 VDC	100 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
