629-037-640-531

Active

EDAC Inc.

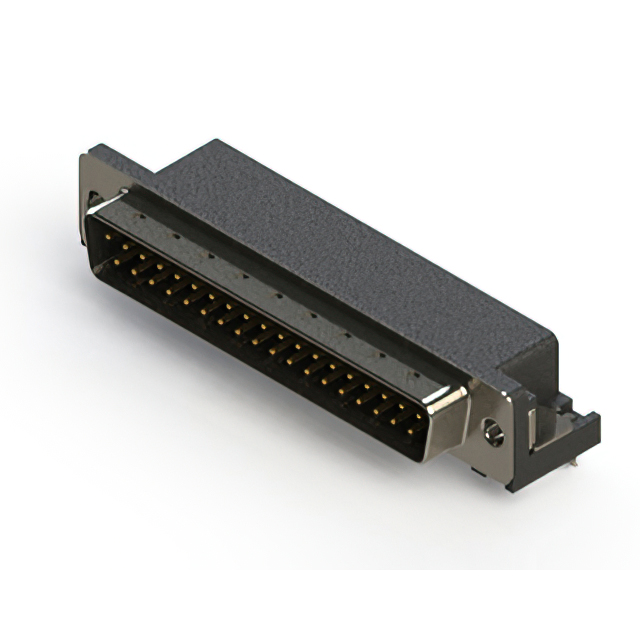

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-037-640-531

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-037-640-531

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

629-037 Series

Part	Contact Type	Contact Material	Shell Size, Connector Layout	Contact Finish	Termination	Features	Number of Rows	Backset Spacing	Backset Spacing	Number of Positions	Color	Dielectric Material	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Mounting Type	Flange Feature	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 629-037-240-513	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A	Flash	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0
EDAC Inc. 629-037-640-033	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A		Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Male Pins Plug	-55 °C	85 °C	Nickel Plated Steel	UL94 V-0	0.76 Ám	30 Áin
EDAC Inc. 629-037-240-545	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A	Flash	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0
EDAC Inc. 629-037-640-531	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A		Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0	0.76 Ám	30 Áin
EDAC Inc. 629-037-240-535	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A	Flash	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0
EDAC Inc. 629-037-340-532	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A		Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0	0.38 µm	15 µin
EDAC Inc. 629-037-340-531	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A		Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0	0.38 µm	15 µin
EDAC Inc. 629-037-340-545	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A		Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0	0.38 µm	15 µin
EDAC Inc. 629-037-640-511	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A		Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0	0.76 Ám	30 Áin
EDAC Inc. 629-037-240-543	Signal	Copper Alloy	4 (DC C)	Gold	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	2	0.409 in	10.4 mm	37	Black	Polyester Thermoplastic	D-Sub	3 A	Flash	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Male Pins Plug	-55 °C	125 °C	Nickel Plated Steel	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 4.77
Newark	Each	500	$ 6.34

Description

General part information

629-037 Series

37 Position D-Sub Plug, Male Pins Connector
