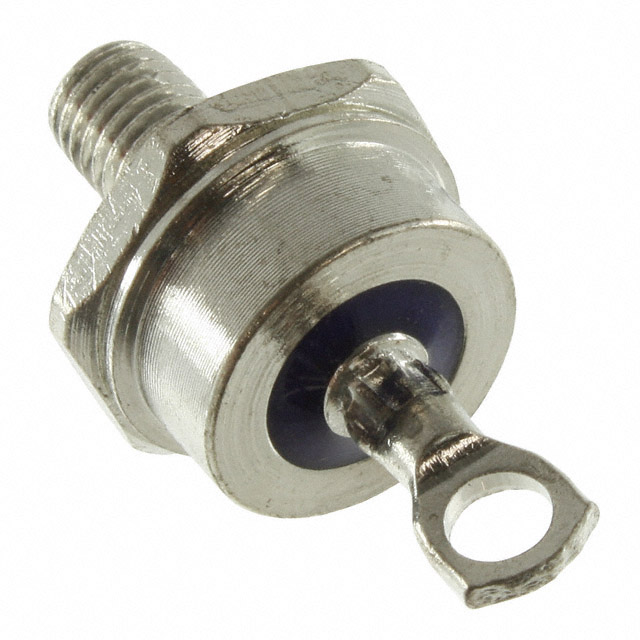

1N2131A

Active

GeneSiC Semiconductor

DIODE GEN PURP 200V 60A DO5

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP 200V 60A DO5

Technical Specifications

Parameters and characteristics for this part

Specification	1N2131A

Current - Average Rectified (Io)	60 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-203AB, DO-5, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-5
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

DIODE GEN PURP 200V 60A DO5

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Speed	Speed	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Max) @ If
GeneSiC Semiconductor 1N2131A	200 V	Chassis, Stud Mount	200 C	-65 C	Standard	10 µA	60 A	Standard Recovery >500ns	200 mA	DO-5	DO-203AB, DO-5, Stud	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 60A Chassis, Stud Mount DO-5
