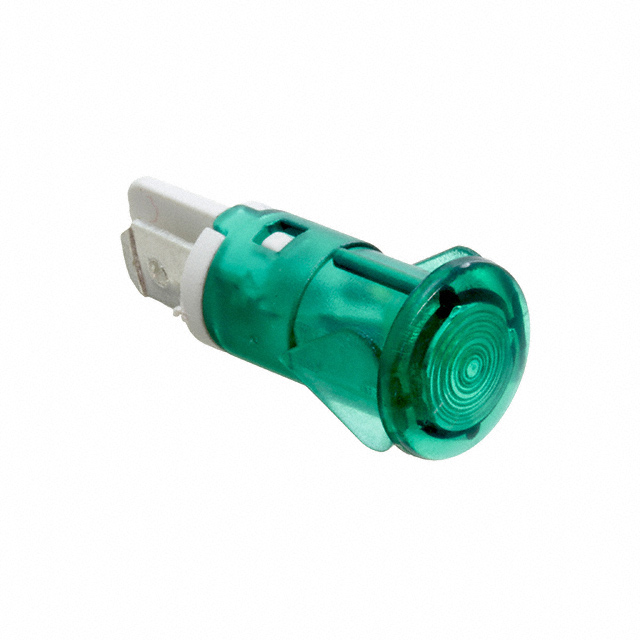

FL1P-12QJ-1-G110V

Active

Mallory Sonalert Products Inc.

LED GRN 12MM SNAP 110VAC/DC STK

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

LED GRN 12MM SNAP 110VAC/DC STK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 2.81

General part information

LED Panel Indicator Green 60° 110V 20mA Quick Connect - 0.250" (6.3mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FL1P-12QJ-1-G110V	FL1P-12 Series

Ingress Protection	IP50	IP50
Lamp Color	Green	Green, Red
Lens Color	Green	Green, Red
Lens Size [diameter]	14.4 mm	14.2 - 15.7 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating [Max]	10000 mcd	1500 - 10000 mcd
Millicandela Rating [Min]	8000 mcd	1000 - 8000 mcd
Panel Cutout Dimensions	12 mm	12 - 12.5 mm
Panel Cutout Dimensions	0.47 in	0.47 - 0.49 in
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC/DC
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Wire Leads - 7.3" (185.42mm)
Type	LED	LED
Viewing Angle	60 °	35 - 60 °
Voltage	110 V	12 - 220 V

LED GRN 12MM SNAP 110VAC/DC STK

Part	Panel Cutout Shape	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Ratings	Lamp Color	Type	Lens Size [diameter]	Millicandela Rating [Max]	Millicandela Rating [Min]	Lens Style	Ingress Protection	Termination Style	Viewing Angle
Mallory Sonalert Products Inc. FL1P-12QJ-1-G110V	Round	110 V	12 mm	0.47 in	Green	AC/DC	Green	LED	14.4 mm	10000 mcd	8000 mcd	Round with Domed Top	IP50	Quick Connect - 0.250" (6.3mm)	60 °
Mallory Sonalert Products Inc. FL1P-12QW-1-G12V	Round	12 V	12 mm	0.47 in	Green	AC/DC	Green	LED	14.2 mm	10000 mcd	8000 mcd	Round with Domed Top	IP50	Wire Leads - 7.3" (185.42mm)	60 °
Mallory Sonalert Products Inc. FL1P-12QW-2-R220V	Round	220 V	12.5 mm	0.49 in	Red	AC/DC	Red	LED	15.7 mm	1500 mcd	1000 mcd	Round with Domed Top	IP50	Wire Leads - 7.3" (185.42mm)	35 °
Mallory Sonalert Products Inc. FL1P-12QW-2-G220V	Round	220 V	12.5 mm	0.49 in	Green	AC/DC	Green	LED	15.7 mm	10000 mcd	8000 mcd	Round with Domed Top	IP50	Wire Leads - 7.3" (185.42mm)	60 °
