Description
General part information

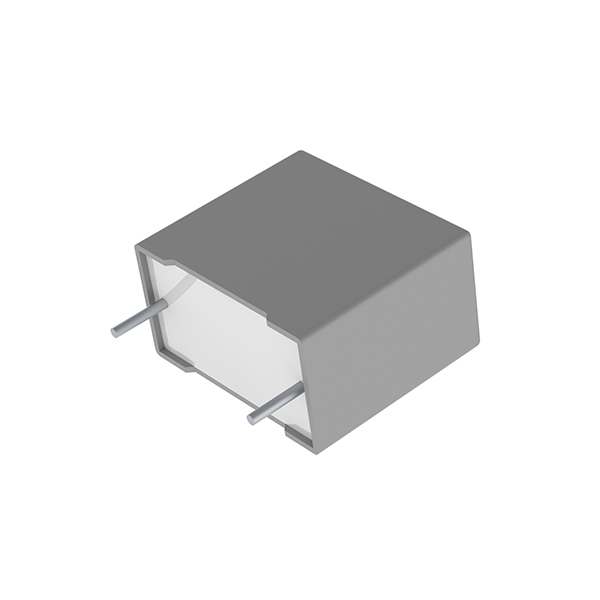

R75IN4180DQ40J
1.8 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R75IN4180DQ40J |
|---|---|
| Applications | Automotive, High Frequency, Switching, DV/DT, High Pulse |
| Capacitance | 1.8 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 8.8 mOhm |
| Height - Seated (Max) | 0.732 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.394 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
