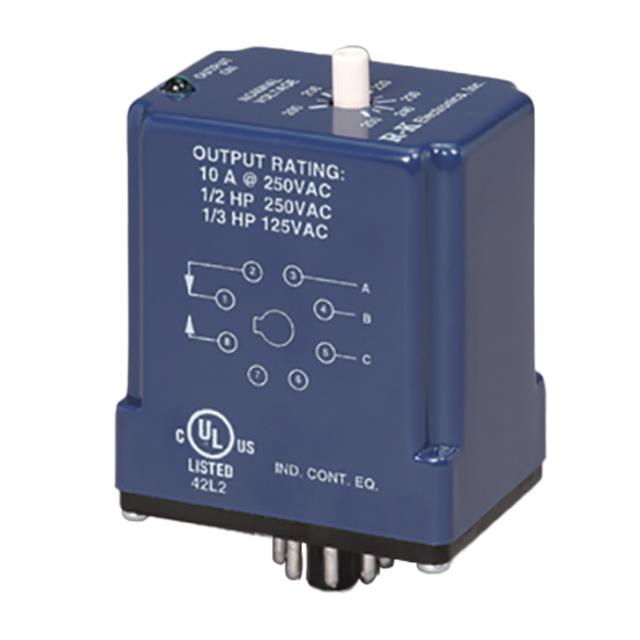

TVM-100-20-2000
ActiveR-K Electronics, Inc.
3 VOLT RELAY ADJ 100-130VAC 10P
TVM-100-20-2000
ActiveR-K Electronics, Inc.
3 VOLT RELAY ADJ 100-130VAC 10P
Description
General part information
TVM-100-20-2000
3 VOLT RELAY ADJ 100-130VAC 10P
Technical Specifications
Parameters and characteristics for this part
| Specification | TVM-100-20-2000 |
|---|---|
| Delay Time | 0.5 s |
| Function | Undervoltage, Overvoltage |
| Mounting Type | Socketable |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Pin Count | 8 |
| Termination Style | Plug In |
| Trip Voltage (Max) | 13 VAC |
| Trip Voltage (Min) | 10 VAC |
| Voltage - Supply (Maximum) | 130 V |
| Voltage - Supply (Minimum) | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
