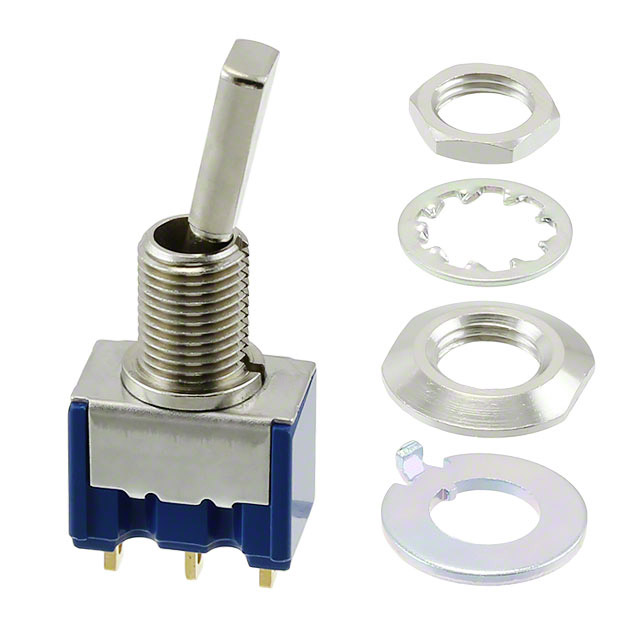

8C1011C-Z
ObsoleteNidec Components Corporation
SWITCH TOGGLE SPDT 25MA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8C1011C-Z
ObsoleteNidec Components Corporation
SWITCH TOGGLE SPDT 25MA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8C1011C-Z |
|---|---|
| Actuator Length [x] | 11.4 mm |
| Actuator Type | Flat Anti-Rotation |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 50000 Cycles |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
8C1011C-Z
Toggle Switch SPDT Panel Mount
