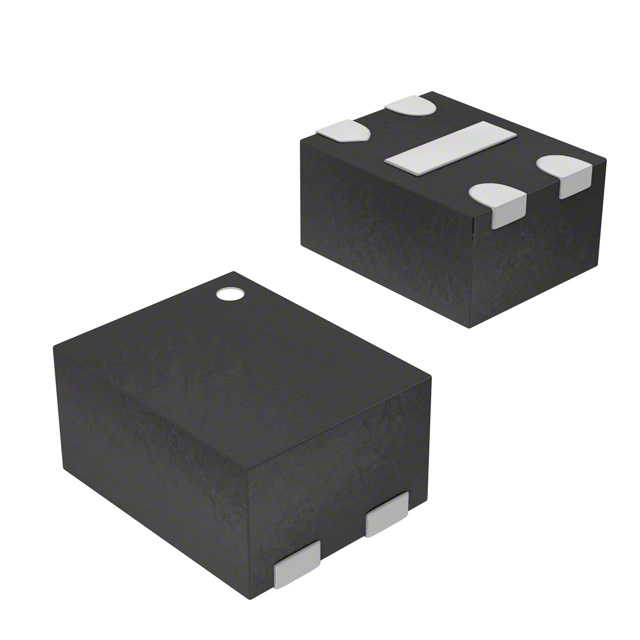

ESDALC5-4BN4
ActiveSTMicroelectronics
TVS DIODE 5VWM 14.5VC 4UQFN
Deep-Dive with AI
Search across all available documentation for this part.
ESDALC5-4BN4
ActiveSTMicroelectronics
TVS DIODE 5VWM 14.5VC 4UQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESDALC5-4BN4 | ESDALC5 Series |
|---|---|---|
| - | - | |
| Applications | General Purpose | General Purpose |
| Bidirectional Channels [custom] | 4 | 1 - 4 |
| Capacitance @ Frequency | 13 pF | 13 - 26 pF |
| Current - Peak Pulse (10/1000µs) | 1 A | 1 - 9 A |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 ¯C | 125 - 150 ¯C |
| Operating Temperature [Min] | -40 °C | -55 - -40 °C |
| Package / Case | 4-XFDFN Exposed Pad | SOD-882, 4-XFDFN Exposed Pad |
| Power - Peak Pulse | 60 W | 60 - 150 W |
| Power Line Protection | False | False |
| Qualification | - | AEC-Q101 |
| Supplier Device Package | 4-uQFN (1x0.8) | SOD-882T, 4-uQFN (1x0.8) |
| Type | Zener | Zener |
| Voltage - Breakdown (Min) [Min] | 5.5 V | 5.5 - 5.8 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 14.5 V | 14.5 - 17.5 V |
| Voltage - Reverse Standoff (Typ) | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| 5000 | $ 0.13 | |||
| Tape & Reel (TR) | 10000 | $ 0.11 | ||
| 30000 | $ 0.11 | |||
| 50000 | $ 0.10 | |||
| 100000 | $ 0.10 | |||
ESDALC5 Series
ESD PROTECTION DEVICE, 17.5 V, SOD-882T, 2 PINS, 5 V, 30 PF
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Power - Peak Pulse | Capacitance @ Frequency | Voltage - Reverse Standoff (Typ) | Current - Peak Pulse (10/1000µs) | Voltage - Clamping (Max) @ Ipp [Max] | Voltage - Breakdown (Min) [Min] | Grade | Mounting Type | Bidirectional Channels [custom] | Supplier Device Package | Qualification | Package / Case | Power Line Protection | Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics ESDALC5-1BT2Y | |||||||||||||||||
STMicroelectronics ESDALC5-1BT2 | |||||||||||||||||
STMicroelectronics ESDALC5-1BT2Y | |||||||||||||||||
STMicroelectronics ESDALC5-1BT2Y | -50 °C | 125 ¯C | 150 W | 26 pF | 5 V | 9 A | 17.5 V | 5.8 V | Automotive | Surface Mount | 1 | SOD-882T | AEC-Q101 | SOD-882 | Zener | ||
STMicroelectronics ESDALC5-4BN4 | -40 °C | 125 ¯C | 60 W | 13 pF | 5 V | 1 A | 14.5 V | 5.5 V | Surface Mount | 4 | 4-uQFN (1x0.8) | 4-XFDFN Exposed Pad | Zener | General Purpose | |||
STMicroelectronics ESDALC5-1BT2 | -55 °C | 150 °C | 150 W | 26 pF | 5 V | 5.8 V | Surface Mount | 1 | SOD-882T | SOD-882 | Zener | General Purpose | |||||
STMicroelectronics ESDALC5-1BT2 | |||||||||||||||||
STMicroelectronics ESDALC5-1BT2 |
Description
General part information
ESDALC5 Series
14.5V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 4-uQFN (1x0.8)
Documents
Technical documentation and resources
No documents available
