Description
General part information

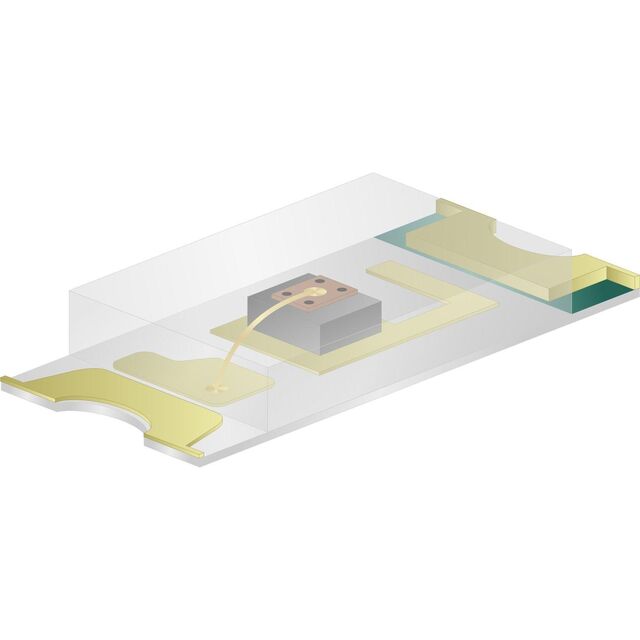

CTL0805FIR4T-CT
Infrared (IR) Emitter 760nm (750nm ~ 770nm) 1.5V 20mA 1mW/sr @ 20mA 140° 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CTL0805FIR4T-CT |
|---|---|
| Current - DC Forward (If) (Max) | 20 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | 0805 (2012 Metric) |
| Radiant Intensity (Ie) Min | 1 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Wavelength | 760 nm |
| Wavelength (Maximum) | 770 nm |
| Wavelength (Minimum) | 750 nm |
| Wavelength (Nominal) | 760 nm |
