Description
General part information
1088730

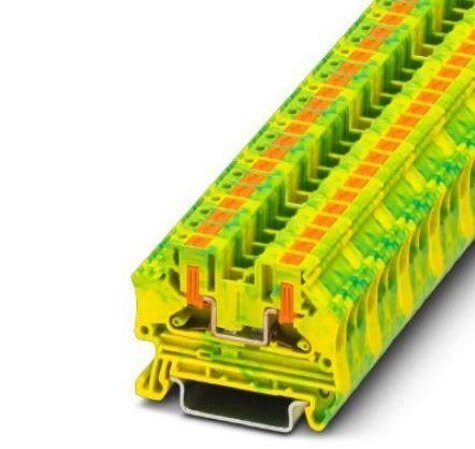

DIN RAIL TERMINAL BLOCKS PTV 4-PE
Technical Specifications
Parameters and characteristics for this part
| Specification | 1088730 |
|---|---|
| Color | Yellow, Green |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 6.2 mm |
| Termination Style | Push In, Spring |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
