0001.2501.PT

Active

SCHURTER Inc.

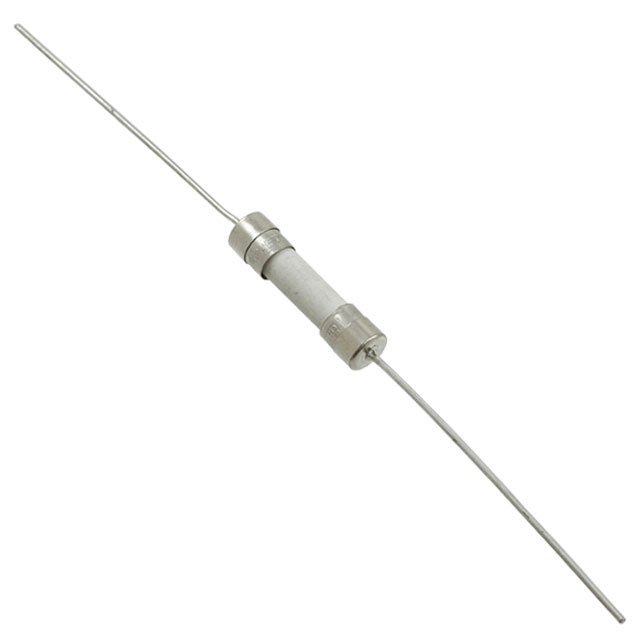

FUSE CERM 500MA 250VAC 300VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CERM 500MA 250VAC 300VDC

Technical Specifications

Parameters and characteristics for this part

Specification	0001.2501.PT

Breaking Capacity @ Rated Voltage	1.5 kA
Current Rating (Amps)	0.5 A
Fuse Type	Cartridge, Ceramic
Melting I²t	0.5
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	300 V

FUSE CERM 500MA 250VAC 300VDC

Part	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case [x]	Package / Case [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - AC	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - DC	Fuse Type
SCHURTER Inc. 0001.2501.PT	Slow Blow	-55 °C	125 °C	Through Hole	5 mm	20 mm	0.886 "	22.5 mm	5.4 mm	0.213 in	250 V	0.5 A	1.5 kA	0.5	300 V	Cartridge, Ceramic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

500 mA 250 V AC 300 V DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
