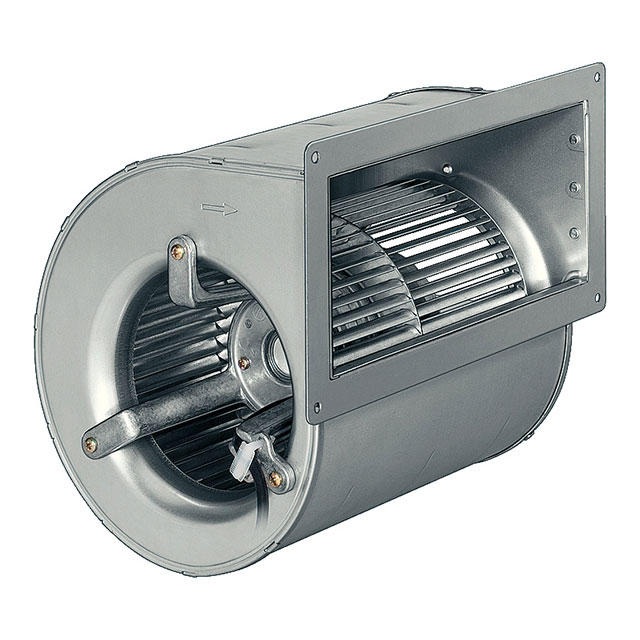

D4E146-AA25-34
Obsoleteebm-papst Inc.
FAN BLWR CENT 206X270MM 115VAC
D4E146-AA25-34
Obsoleteebm-papst Inc.
FAN BLWR CENT 206X270MM 115VAC
Description
General part information
D4E146-AA25-34
Fan Blower, Centrifugal 115VAC Rectangular/Rounded - 206mm L x 219mm H (146mm Dia) Ball 450.0 CFM (12.60m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | D4E146-AA25-34 |
|---|---|
| Air Flow | 450 CFM |
| Approval Agency | CE, VDE |
| Bearing Type | Ball |
| Fan Type | Blower, Centrifugal |
| Material - Blade | Steel |
| Material - Frame | Steel |
| Noise | 55 dB |
| Power (Watts) | 128 W |
| Size / Dimension Diameter | 146 mm |
| Size / Dimension Height | 219 mm |
| Size / Dimension Length | 206 mm |
| Size / Dimension Shape | Rectangular/Rounded |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 115 V |
| Weight | 7.7 lbs |
| Width | 270 mm |
