MS6N-EM1-1/2
ActiveFesto Corporation
ON-OFF VALVE
MS6N-EM1-1/2
ActiveFesto Corporation
ON-OFF VALVE
Description
General part information

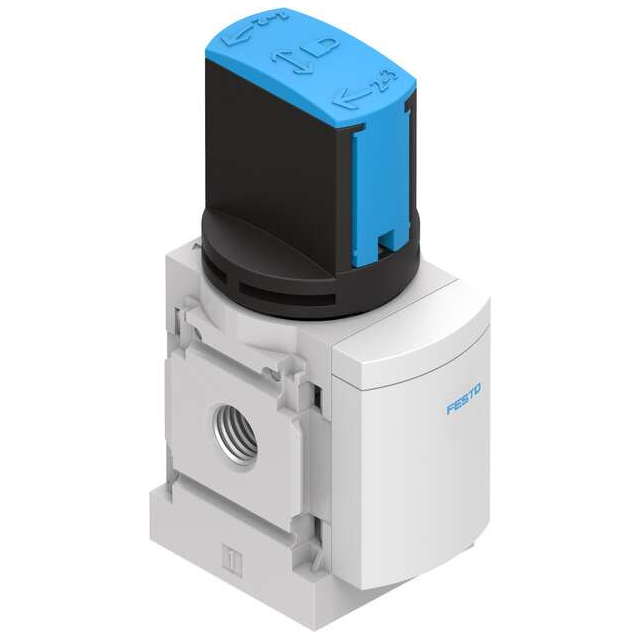

MS6N-EM1-1/2
3/2 Gate Valve Manual Knob Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | MS6N-EM1-1/2 |
|---|---|
| Actuator Type | Manual Knob |
| Connection Method | Threaded |
| Fluid Type | Compressed Air, Inert Gas |
| Function | 3, 2 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Pressure (Max) | 265 PSI |
| Operating Pressure (Min) | 0 PSI |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Thread Size | 0.5 in |
| Thread Standard | NPT |
| Type | Gate Valve |
