1051018-1

Active

TE Connectivity Aerospace, Defense and Marine

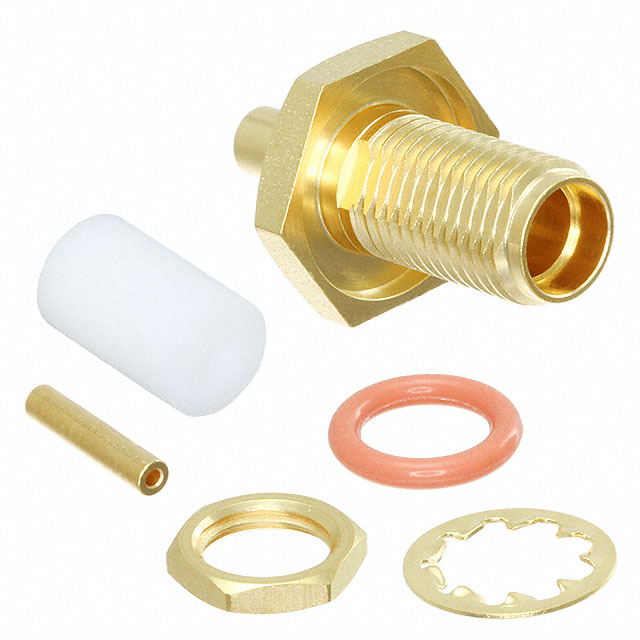

CONN SMA JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN SMA JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1051018-1

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

CONN SMA JACK STR 50 OHM SOLDER

Part	Connector Type	Housing Color	Connector Style	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Body Material	Center Contact Material	Mounting Feature	Dielectric Material	Frequency - Max [Max]	Center Contact Plating	Body Finish	Impedance	Mating Cycles	Includes	Number of Ports	Contact Termination	Voltage Rating
TE Connectivity Aerospace, Defense and Marine 1051018-1	Female Socket, Jack	Gold	SMA	Solder	-65 ░C	105 ░C	RG-405 (.085" Semi Rigid)	Stainless Steel	Beryllium Copper	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	18 GHz	Gold	Gold	50 Ohms	500	1 Connector, 1 Contact, 1 Lockwasher, 1 Nut	1	Solder	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
