FMCA2885-100CM
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCJACK 39.3701
FMCA2885-100CM
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCJACK 39.3701
Description
General part information
FMCA2885-100CM

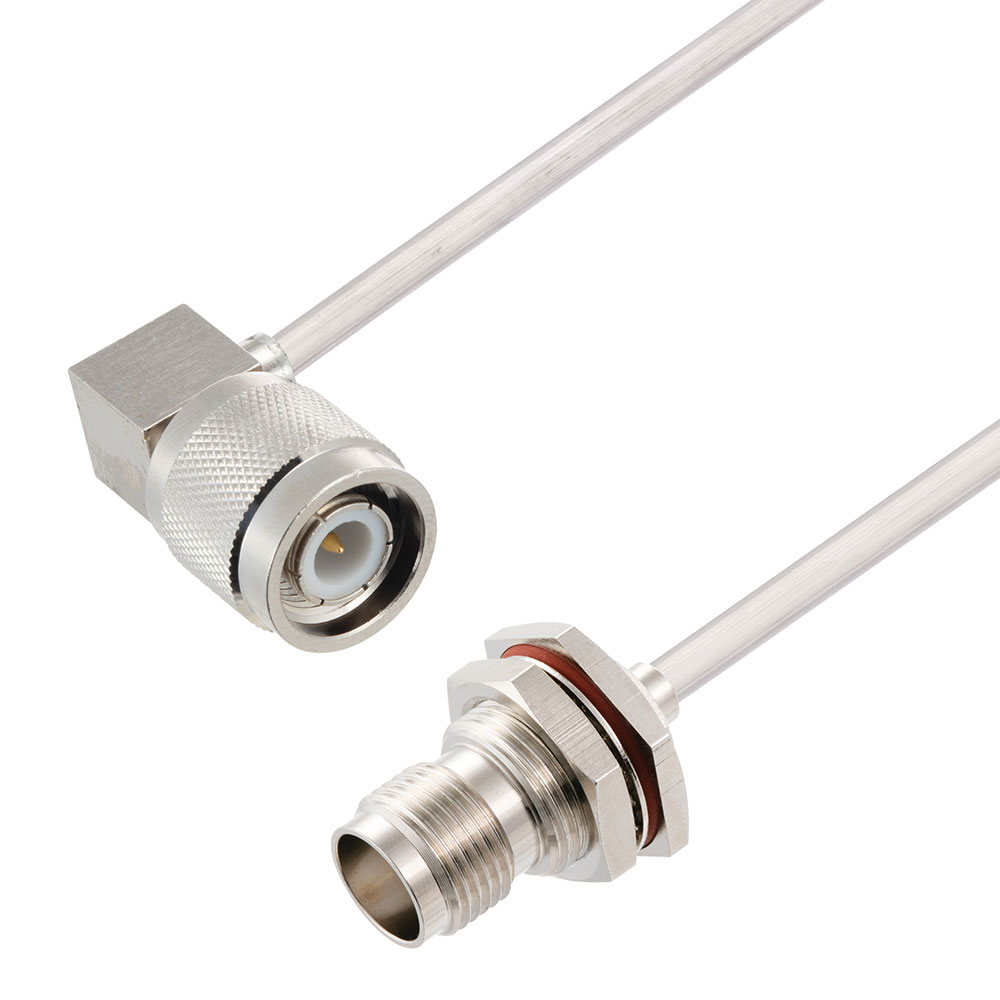

Cable Assembly Coaxial TNC to TNC Hand Formable .141 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2885-100CM |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | TNC |
