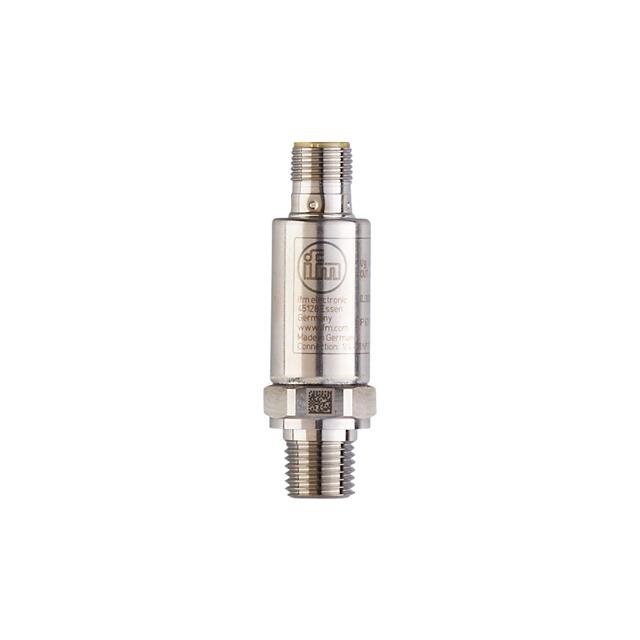

PT2424
Activeifm efector, inc.
PRESSURE TRANSMITTER, 2WIRE DC,
PT2424
Activeifm efector, inc.
PRESSURE TRANSMITTER, 2WIRE DC,
Description
General part information
PT2424
PRESSURE TRANSMITTER, 2WIRE DC,
Technical Specifications
Parameters and characteristics for this part
| Specification | PT2424 |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure | 580 PSI |
| Operating Pressure | 200 PSI |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Threaded, Cylinder |
| Pin Count | 2 |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Termination Style | M12 |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 8.5 V |
