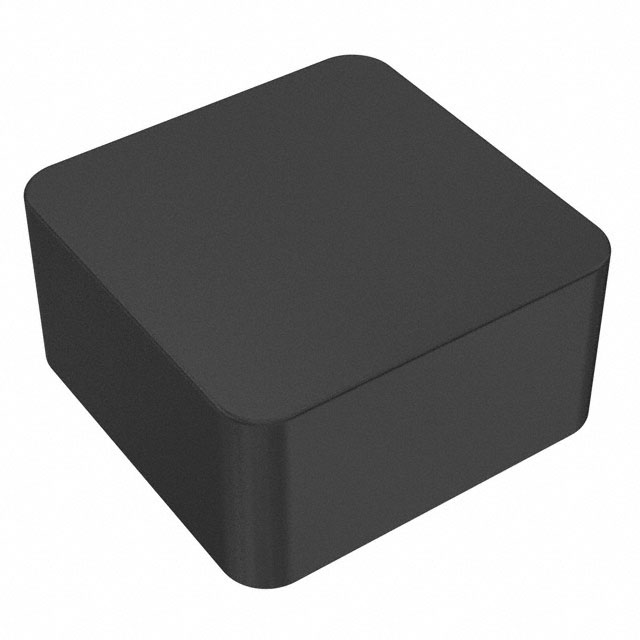

CDMT40D20HF-R47NC
ActiveSumida America Components Inc.
FIXED IND 470NH 6.8A 8.3MOHM SMD
CDMT40D20HF-R47NC
ActiveSumida America Components Inc.
FIXED IND 470NH 6.8A 8.3MOHM SMD
Description
General part information
CDMT40D20HF-R47NC
470 nH Shielded Molded Inductor 6.8 A 8.3mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDMT40D20HF-R47NC |
|---|---|
| Current - Saturation (Isat) | 11.4 A |
| Current Rating | 6.8 A |
| DC Resistance (DCR) (Max) | 8.3 mOhm |
| Height - Seated (Max) | 0.083 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.163 in |
| Size / Dimension Width | 0.163 in |
| Tolerance | 30 % |
| Type | Molded |
