Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-IKS4A1 | X-NUCLEO-IKS4A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Pressure, Accelerometer, Gyroscope, Magnetometer, Temperature | Pressure, Accelerometer, Gyroscope, Magnetometer, Temperature |
| Interconnect System | DIL24, Arduino R3 Shield | DIL24, Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | Sensor | Sensor |
| Utilized IC / Part | LPS22DF, LIS2MDL, LSM6DSO16IS, LIS2DUXS12, STTS22H, LSM6DSV16X | LPS22DF, LIS2MDL, LSM6DSO16IS, LIS2DUXS12, STTS22H, LSM6DSV16X |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-IKS4A1 Series
Motion MEMS and environmental sensor expansion board for STM32 Nucleo
| Part | Function | Interconnect System | Type | Platform | Suggested Programming Environment | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-IKS4A1 | |||||||
STMicroelectronics X-NUCLEO-IKS4A1 | |||||||
STMicroelectronics X-NUCLEO-IKS4A1 | Accelerometer, Gyroscope, Magnetometer, Pressure, Temperature | Arduino R3 Shield, DIL24 | Sensor | Nucleo | STM32Cube | Board(s) | LIS2DUXS12, LIS2MDL, LPS22DF, LSM6DSO16IS, LSM6DSV16X, STTS22H |
Description
General part information
X-NUCLEO-IKS4A1 Series

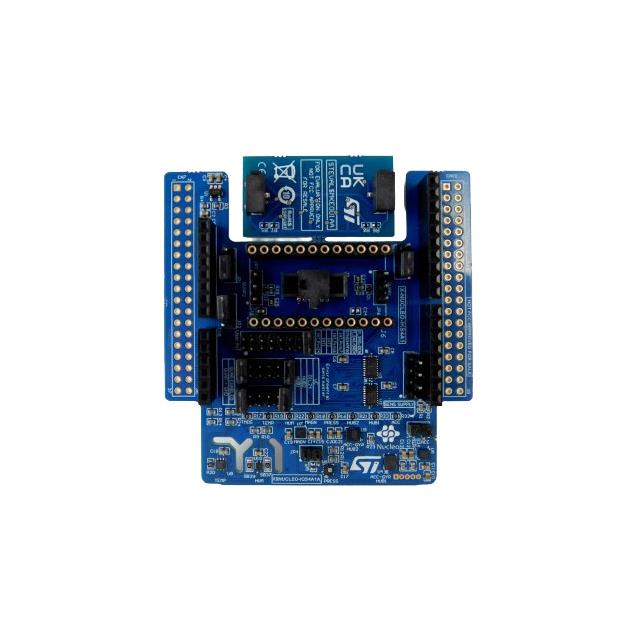

The X-NUCLEO-IKS4A1 is a motion MEMS and environmental sensor evaluation board kit consisting of the main board X-NUCLEO-IQS4A1, which hosts the motion MEMS and environmental sensors, and the detachable add-on board STEVAL-MKE001A, which hosts the Qvar swipe electrodes.
This expansion board allows application development with features like sensor HUB (LSM6DSO16IS and LSM6DSV16X), electronic image stabilization (EIS) and optical image stabilization (OIS) for camera applications through LSM6DSV16X SPI interface and Qvar touch/swipe gestures (thanks to the equipped electrode).
There is also the possibility to integrate presence and motion detection with an IR sensor as well as combining the features of multiple sensors through the DIL24 adapter.
