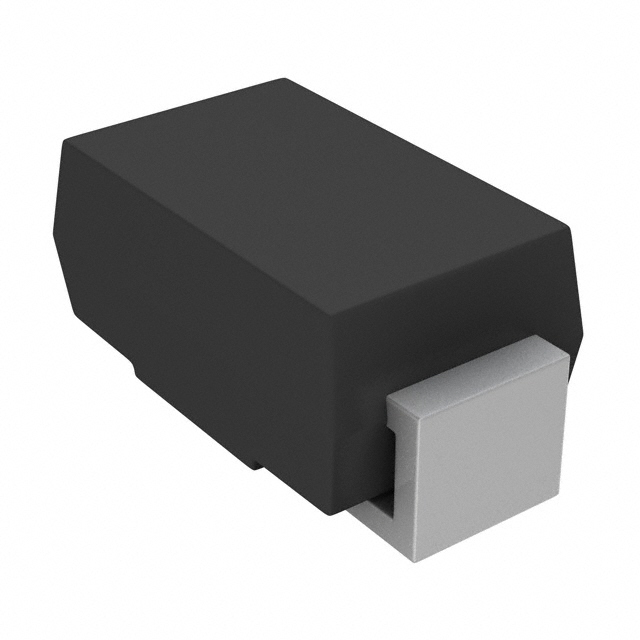

PGSMAJ28AHE2G
ObsoleteTaiwan Semiconductor Corporation
TVS DIODE 28VWM 45.4VC DO214AC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PGSMAJ28AHE2G
ObsoleteTaiwan Semiconductor Corporation
TVS DIODE 28VWM 45.4VC DO214AC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PGSMAJ28AHE2G |
|---|---|
| Current - Peak Pulse (10/1000µs) | 8.8 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | DO-214AC, SMA |
| Power - Peak Pulse | 400 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AC (SMA) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 31.1 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 45.4 V |
| Voltage - Reverse Standoff (Typ) | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PGSMAJ28AHE2G
45.4V Clamp 8.8A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
