6-1337580-0

Active

TE Connectivity AMP Connectors

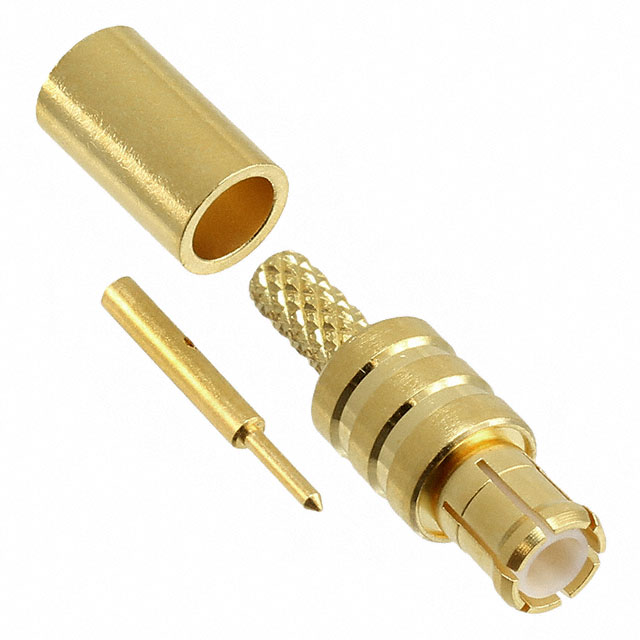

CONN MCX PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	6-1337580-0

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

CONN MCX PLUG STR 50 OHM SOLDER

Part	Contact Termination	Housing Color	Frequency - Max [Max]	Center Contact Material	Center Contact Plating	Impedance	Number of Ports	Mounting Type	Insertion Loss	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Voltage Rating	Connector Style	Body Material	Body Finish	Mating Cycles	Connector Type	Dielectric Material	Shield Termination	Includes
TE Connectivity AMP Connectors 6-1337580-0	Solder	Gold	6000 MHz	Brass	Gold	50 Ohms	1	Free Hanging (In-Line)	0.1 dB	Snap-On	-65 ░C	165 °C	188, 316, RG-174	335 V	MCX	Brass	Gold	500	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Crimp	1 Connector, 1 Contact, 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
