8282-6SG-522

Active

Conxall/Switchcraft

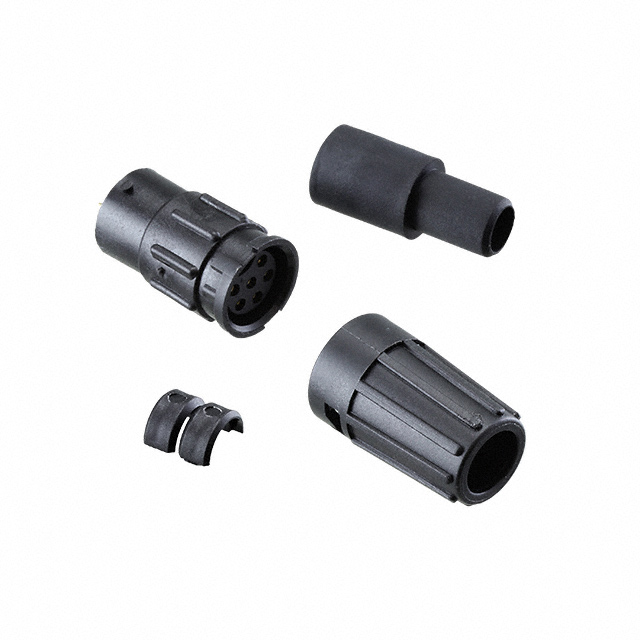

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8282-6SG-522

Active

Conxall/Switchcraft

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.20
		10	$ 14.91
		100	$ 12.29

Description

General part information

8282-6SG Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8282-6SG-522	8282-6SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	0.16 - 0.18 in
Cable Opening	-	0.18 - 0.2 in
Cable Opening	-	4.06 - 4.57 mm
Cable Opening	-	4.57 - 5.08 mm
Cable Opening [Max] [diameter]	6.35 mm	5.33 - 6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.21 - 0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.19 - 0.22 in
Cable Opening [Min] [diameter]	5.59 mm	4.83 - 5.59 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

8282-6SG Series

CONN RCPT FMALE 6P GOLD SLDR CUP

Part	Orientation	Primary Material	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Features	Fastening Type	Color	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ingress Protection	Applications	Connector Type	Contact Finish - Mating	Number of Positions	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 8282-6SG-519	Keyed	Plastic	Nylon, Polyamide (PA)	0.21 in	0.19 in	4.83 mm	5.33 mm	Brass	Backshell	Bayonet Lock	Black	600 V	Varies by Wire Gauge	-40 °C	115 °C	Unshielded	Weathertight	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Gold	6	Free Hanging (In-Line)
Conxall/Switchcraft 8282-6SG-315	Keyed	Plastic	Nylon, Polyamide (PA)					Brass	Backshell	Bayonet Lock	Black	600 V	Varies by Wire Gauge	-40 °C	115 °C	Unshielded	Weathertight	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Gold	6	Free Hanging (In-Line)	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 8282-6SG-522	Keyed	Plastic	Nylon, Polyamide (PA)	0.25 in	0.22 in	5.59 mm	6.35 mm	Brass	Backshell	Bayonet Lock	Black	600 V	Varies by Wire Gauge	-40 °C	115 °C	Unshielded	Weathertight	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Gold	6	Free Hanging (In-Line)
Conxall/Switchcraft 8282-6SG-311	Keyed	Plastic	Nylon, Polyamide (PA)					Brass	Backshell	Bayonet Lock	Black	600 V	Varies by Wire Gauge	-40 °C	115 °C	Unshielded	Weathertight	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Gold	6	Free Hanging (In-Line)			2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 8282-6SG-516	Keyed	Plastic	Nylon, Polyamide (PA)					Brass	Backshell	Bayonet Lock	Black	600 V	Varies by Wire Gauge	-40 °C	115 °C	Unshielded	Weathertight	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Gold	6	Free Hanging (In-Line)						0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8282-6SG-318	Keyed	Plastic	Nylon, Polyamide (PA)					Brass	Backshell	Bayonet Lock	Black	600 V	Varies by Wire Gauge	-40 °C	115 °C	Unshielded	Weathertight	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Gold	6	Free Hanging (In-Line)						0.18 in	0.2 in	4.57 mm	5.08 mm
