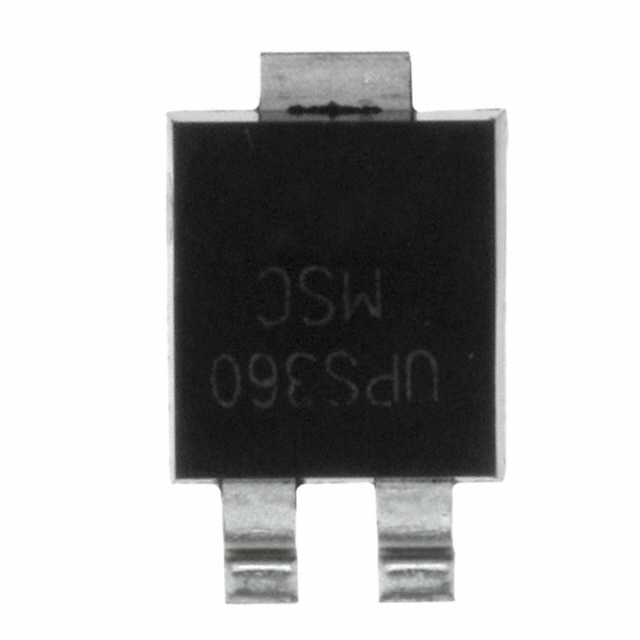

UPS360E3/TR13

Active

Microchip Technology

DIODE SCHOTTKY 60V 3A POWERMITE3

Search across all available documentation for this part.

Active

Microchip Technology

DIODE SCHOTTKY 60V 3A POWERMITE3

Technical Specifications

Parameters and characteristics for this part

Specification	UPS360E3/TR13

Capacitance @ Vr, F	130 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Powermite®3
Speed	200 mA, 500 ns
Supplier Device Package	Powermite 3
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	630 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.62
	Digi-Reel®	1	$ 0.62
	Tape & Reel (TR)	5000	$ 0.59
Microchip Direct	N/A	1	$ 0.62
		100	$ 0.59
		500	$ 0.56
		1000	$ 0.53

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Technology	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Mounting Type	Current - Reverse Leakage @ Vr
Microchip Technology UPS360E3/TR13	60 V	130 pF	Schottky	Powermite®3	3 A	630 mV	Powermite 3	-55 °C	125 °C	200 mA, 500 ns	Surface Mount	200 µA

General part information

Technical documentation and resources

No documents available
